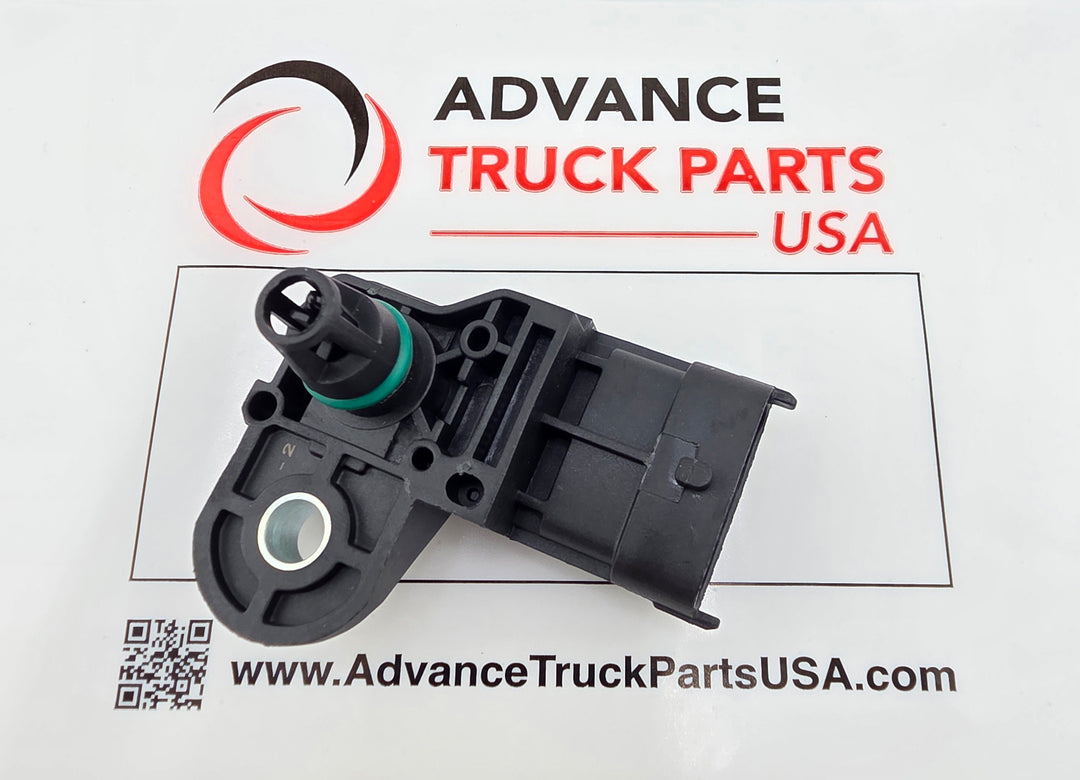

Direct Replacement for Bosch 0281006102 & Case IH 504372225
Maximize Engine Efficiency and Turbo Performance The ATP Aftermarket MAP Sensor is engineered to provide precise, real-time data to your engine's ECU, ensuring optimal fuel injection and boost pressure control. Designed as a high-quality alternative to the original Bosch unit, this sensor includes an integrated air temperature sensor (IAT) to provide dual-function monitoring in a single, robust 4-pin unit.
Product Features
-
OE-Matched Performance: Built to the exact tolerances of the original equipment (0281006102) to ensure a "plug-and-play" installation without ECU recalibration.
-
High-Pressure Reliability: Supports a wide pressure range from 0.5 Bar to 4.0 Bar (50-400kPa), making it ideal for high-boost diesel and heavy-duty applications.
-
Enhanced Durability: Features a rugged housing designed to withstand the extreme vibrations and high-temperature environments common in commercial trucking and agricultural operations.
-
Integrated Temperature Sensing: Monitors intake air temperature to help your engine manage air density and prevent detonation under heavy loads.
Technical Specifications
-
Primary Part Numbers: 0281006102, 504372225.
-
Pressure Range: 0.5 - 4.0 Bar.
-
Voltage Output: 500mV - 4500mV.
-
Connector Type: 4-Pin Oval.
-
Application: Intake Manifold / Boost Pressure.
Comprehensive Fitment Guide
This sensor is a direct cross-reference for a wide range of agricultural, commercial, and passenger vehicles:
-
Case IH: Magnum (180–380), Steiger, and Farmall series tractors; Axial-Flow combines (5130–9250).
-
New Holland: T6, T7, and T8 series tractors.
-
Iveco: Eurocargo, Stralis, and Trakker heavy-duty trucks.
-
Passenger & Off-Road: Jeep (55219299), Alfa Romeo (Giulia 2.2D), Fiat (Tipo, 500X), and Ford (EC46-9F479-AA).
Interchange Part Numbers
-
Bosch: 0281002576, 0281002743, 0281006114
-
OE Refs: 55219299, 5802231983, 5010437653, 5443722250
-
Volvo/Renault: 22320906, 5010437653
12 Month Advance Truck Parts USA Replacement Warranty.
Note: For Pigtail Click Here
