ATP F7078  Ford 1 Wire Alternator Conversion Kit by Transpo
ATP F7078  Ford 1 Wire Alternator Conversion Kit by Transpo

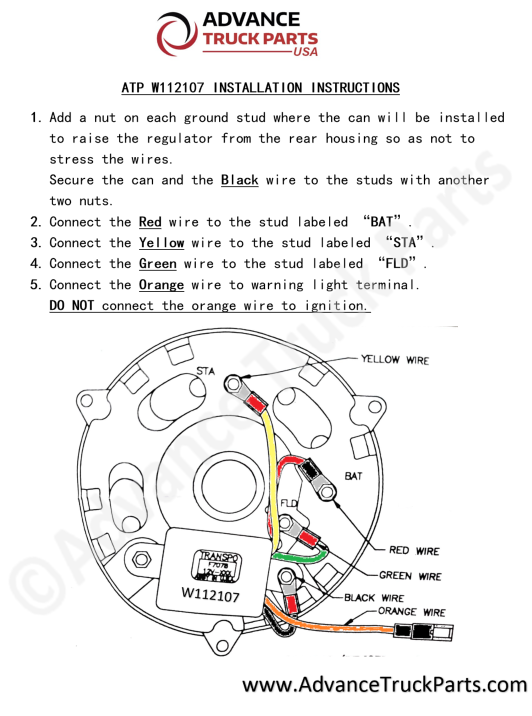

F7078 Installation Instructions
ATP F7078  Ford 1 Wire Alternator Conversion Kit by Transpo

ATP F7078 Ford 1 Wire Alternator Conversion Kit by Transpo

Regular price
$28.95
Sale price
$28.95
Order by 6:00 PM E.T. for Same Day USPS First Class Shipping | Next Day available @ checkout

Stock: 73

ATP F7078  Ford 1 Wire Alternator Conversion Kit by Transpo

Benefits

  • Same Day Shipping
  • Durable Heavy Duty Voltage Regulator conversion kit for long life
  • Next Day Delivery Available @ checkout
  • Worldwide Shipping rates available at checkout


Specifications

  • F7078 is a small voltage and useful conversion kit that eliminates and simplify your alternators wires going to the alternator
  • Used with standard Ford 1G Series 45-65 Amps
  • Used with External Regulator / External Fan Alternators
  • 12 Volt, B-Circuit, 14.2 Vset
  • Well Built kit eliminate all messy wire and boxes
  • Install on the back of the alternator
  • 3:1-wire hook-up
  • Adjustable Voltage dial
  • Stator excited
  • Low stand by Drain

Dimensions:



F7078 Ford 1 Wire Alternator Conversion Kit
F7078 Ford 1 Wire Alternator Conversion Kit



Notes

  • NOTE 1: For Use With Later Design "Phase Connection" STA Terminals
  • NOTE 2: If Used On Older "Y-Neutral" STA Terminals, Connect Yellow Directly To One Of The Stator/Rectifier Solder Joints
  • NOTE 3: Wires:
    • YELLOW - Stator,
    • GREEN - Field, RED - B+
    • BLACK - Ground
    • ORANGE - optional Indicator Light

  • 12 months replacement warranty by Advance Truck Parts

    Applications

    • American Motors (1976-1978)
    • Ford (1969-1985)
    • Lincoln (1972-1978)
    • Mercury (1972-1985)



    Advance Truck Parts USA F7078
