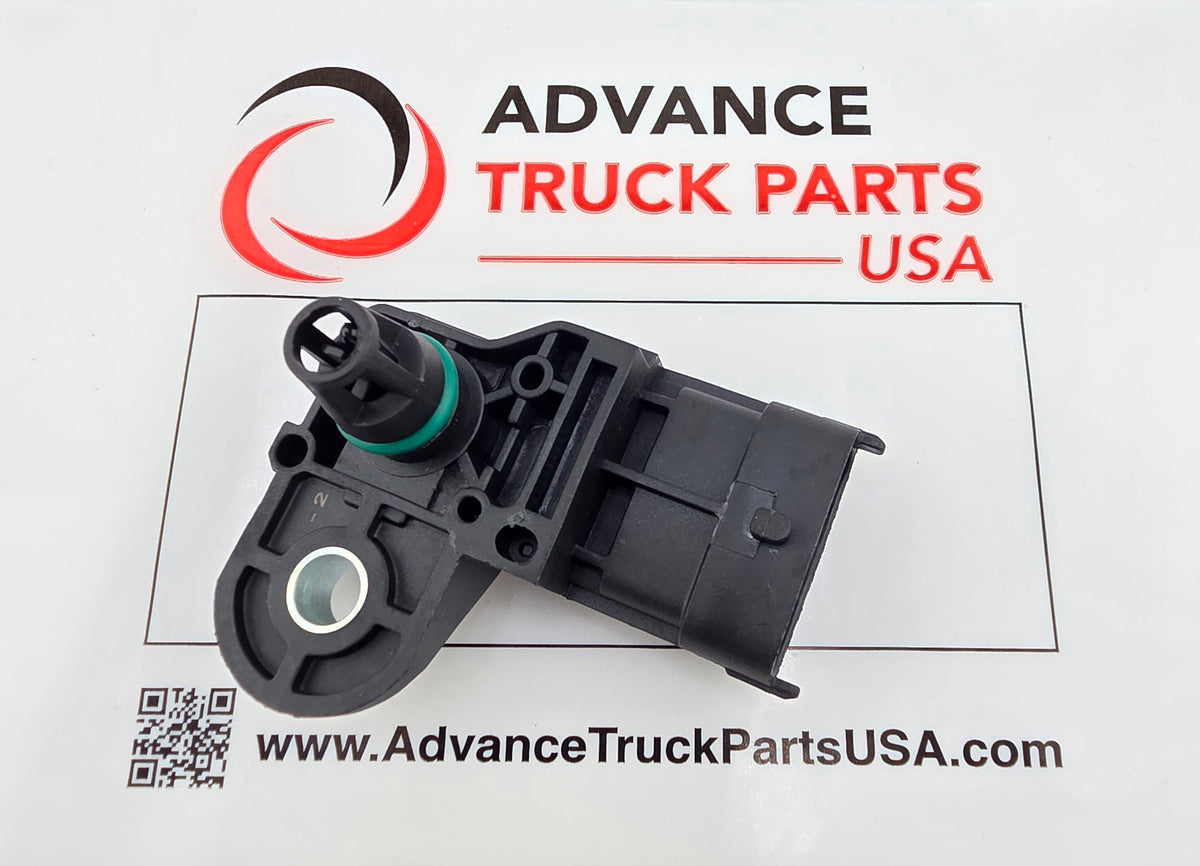

ATP MAP Sensor for Bosch 0281006102 Case IH 504372225

Direct Replacement for Bosch 0281006102 & Case IH 504372225

Maximize Engine Efficiency and Turbo Performance: The ATP Aftermarket MAP Sensor is engineered to provide precise, real-time data to your engine's ECU, ensuring optimal fuel injection and boost pressure control. Designed as a high-quality alternative to the original Bosch unit, this sensor includes an integrated air temperature sensor (IAT) to provide dual-function monitoring in a single, robust 4-pin unit.

Product Features

• OE-Matched Performance: Built to the exact tolerances of the original equipment (0281006102) to ensure a "plug-and-play" installation without ECU recalibration.

• High-Pressure Reliability: Supports a wide pressure range from 0.5 Bar to 4.0 Bar (50-400kPa), making it ideal for high-boost diesel and heavy-duty applications.

• Enhanced Durability: Features a rugged housing designed to withstand the extreme vibrations and high-temperature environments common in commercial trucking and agricultural operations.

• Integrated Temperature Sensing: Monitors intake air temperature to help your engine manage air density and prevent detonation under heavy loads.

Technical Specifications

• Primary Part Numbers: 0281006102, 504372225.

• Pressure Range: 0.5 - 4.0 Bar.

• Voltage Output: 500mV - 4500mV.

• Connector Type: 4-Pin Oval.

• Application: Intake Manifold / Boost Pressure.

Comprehensive Fitment Guide

This sensor is a direct cross-reference for a wide range of agricultural, commercial, and passenger vehicles:

• Case IH: Magnum (180–380), Steiger, and Farmall series tractors; Axial-Flow combines (5130–9250).

• New Holland: T6, T7, and T8 series tractors.

• Iveco: Eurocargo, Stralis, and Trakker heavy-duty trucks.

• Passenger & Off-Road: Jeep (55219299), Alfa Romeo (Giulia 2.2D), Fiat (Tipo, 500X), and Ford (EC46-9F479-AA).

Interchange Part Numbers

• Bosch: 0281002576, 0281002743, 0281006114

• OE Refs: 55219299, 5802231983, 5010437653, 5443722250

• Volvo/Renault: 22320906, 5010437653

12 Month Advance Truck Parts USA Replacement Warranty.

Note: For Pigtail Click Here
