ATP Thermal Fan Solenoid Switch 220 Deg 8037061 8037061P

Index 8037061 8037061P Temperature Control Fan Switch 220deg F.

Benefits

• Same Day Shipping

• Index Manufactured Dual Thermal Switch with NO and NC functions.

• Next Day Delivery Available @ checkout

• Worldwide International Shipping Rates available @ checkout

Specifications

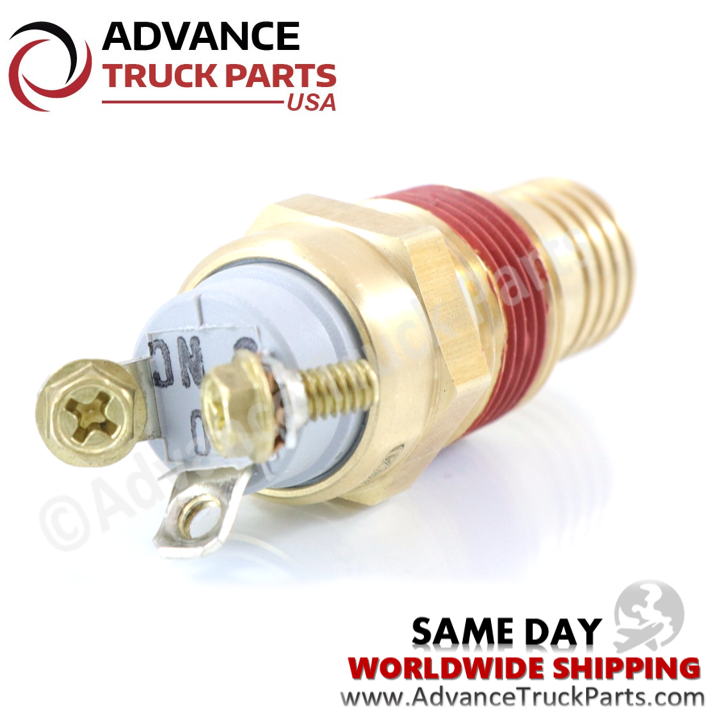

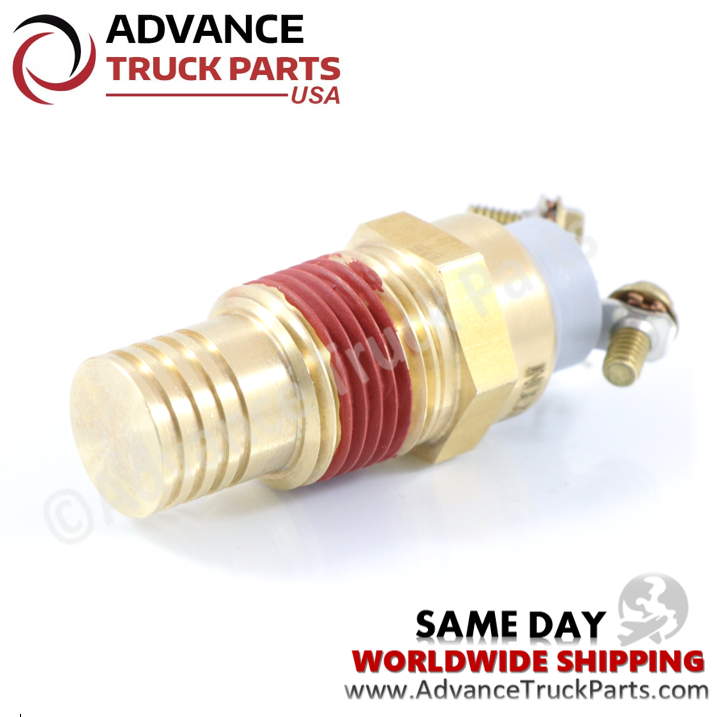

• 220°F, Thermal Control Fan Switch. 1/2 NPTF Housing, Three 8-32 threaded tabs.

• To connect as a normally open   switch used Screw Terminals "C" and "NO"

• To connect as a normally closed switch used Screw Terminals "C" and "NC"

• Heavy duty temperature switch. Made in the USA. Fast, stable and accurate circuit control for up to a million or more cycles. Proven performance in severe, high vibration environments. Applications include: temperature control, indication, warning, alarm and monitoring for engine cooling, fans, shutters, transmissions, hydraulic fluid, heating elements, fan controls and more.

Applications

• Some Applications include Cummins & International Universal Components / Navistar Universal / DT408 (93-97) DT466 (Yr: 93-97) DT 466E HEUI (Yr: 93-99) / DT530 (Yr: 93-97) DT530E HEUI (Yr: 93-98) Engines.

Replaces

• 51618494, 1002-07106-36, 1117934
