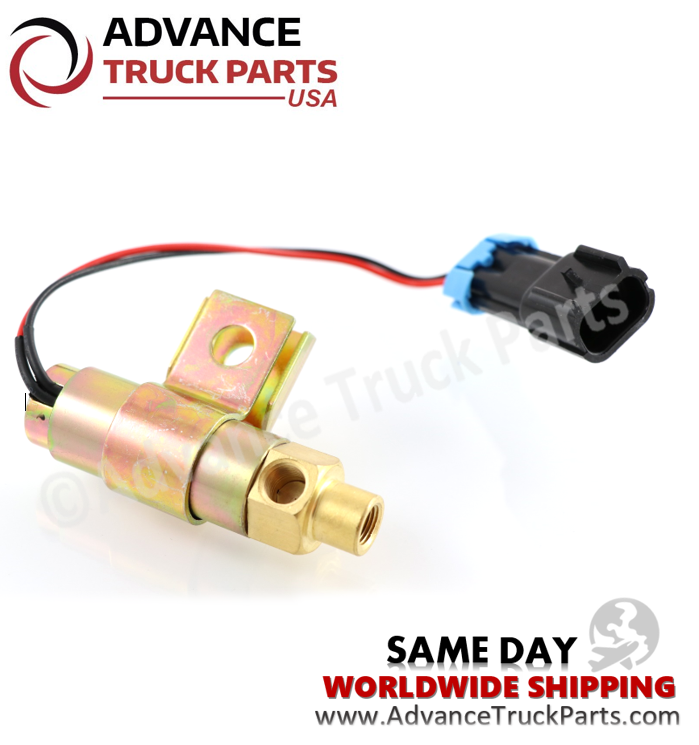

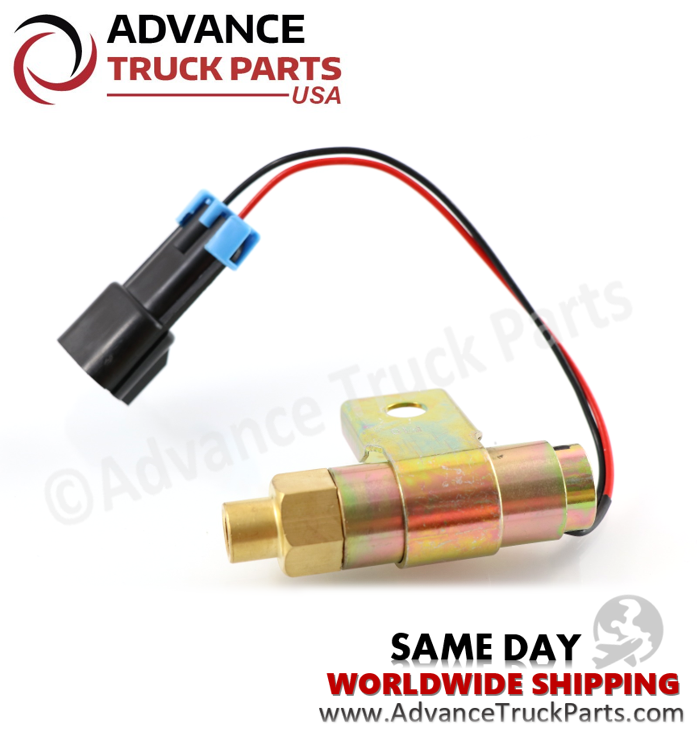

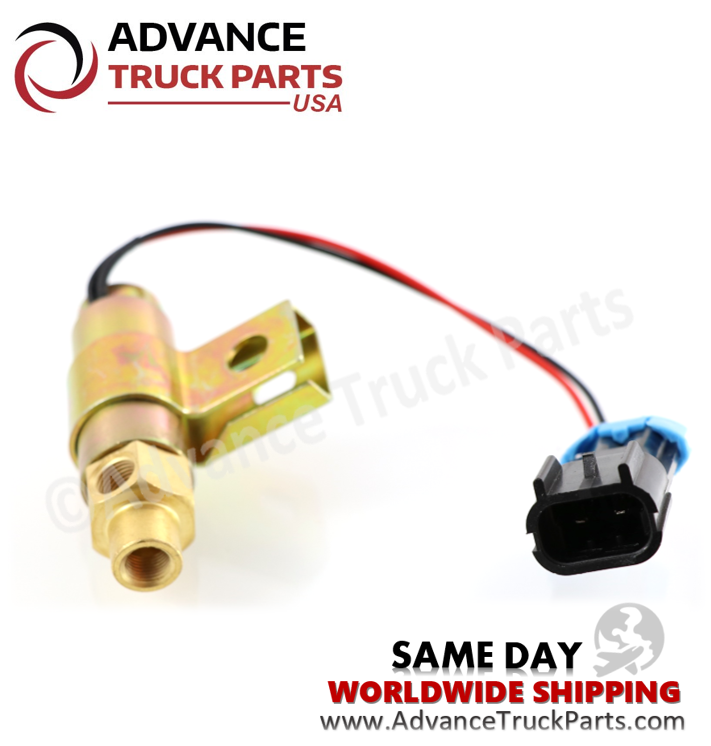

5025-4 ATP Fan Clutch Solenoid Valve for Trucks

Name: 5025-4 ATP Fan Clutch Solenoid Valve for Trucks
Brand: Advance Truck Parts
SKU: 77-254
Price: 50.83 USD
Availability: InStock

Advance Truck Parts

Price

$50.83

Save $-50.83

/

Same-day Worldwide Shipping

For shipping rates, add to cart

Secure payments

Stock: 182

In stock, ready to ship
Backordered, shipping soon

Description

Advance Truck Parts 5025-4 Fan Clutch Solenoid Valve for Trucks

Specifications

Normally Open Inlet Port Size	Female 1/8-27 NPTF
Normally Closed Inlet Port Size	Female 1/8-27 NPTF
Outlet Port Size	Female 1/8-27 NPTF
Voltage	12 Volts
Orifice Size Minimum	.047" minimum
Flow Rate @ 120 psi	2.77 Standard Cubic Feet/min
Diode Installed	Yes
Wire Length	9"
Tested	Tested in the USA
Warranty	12 Months

Service Kit WTK0131 is available.

Note: This unit comes incorporated with a Diode to protect the current to flow in one direction. Also this unit comes with the connectors. Don't be tricked into buying universals solenoids valves without diode and connectors. .
