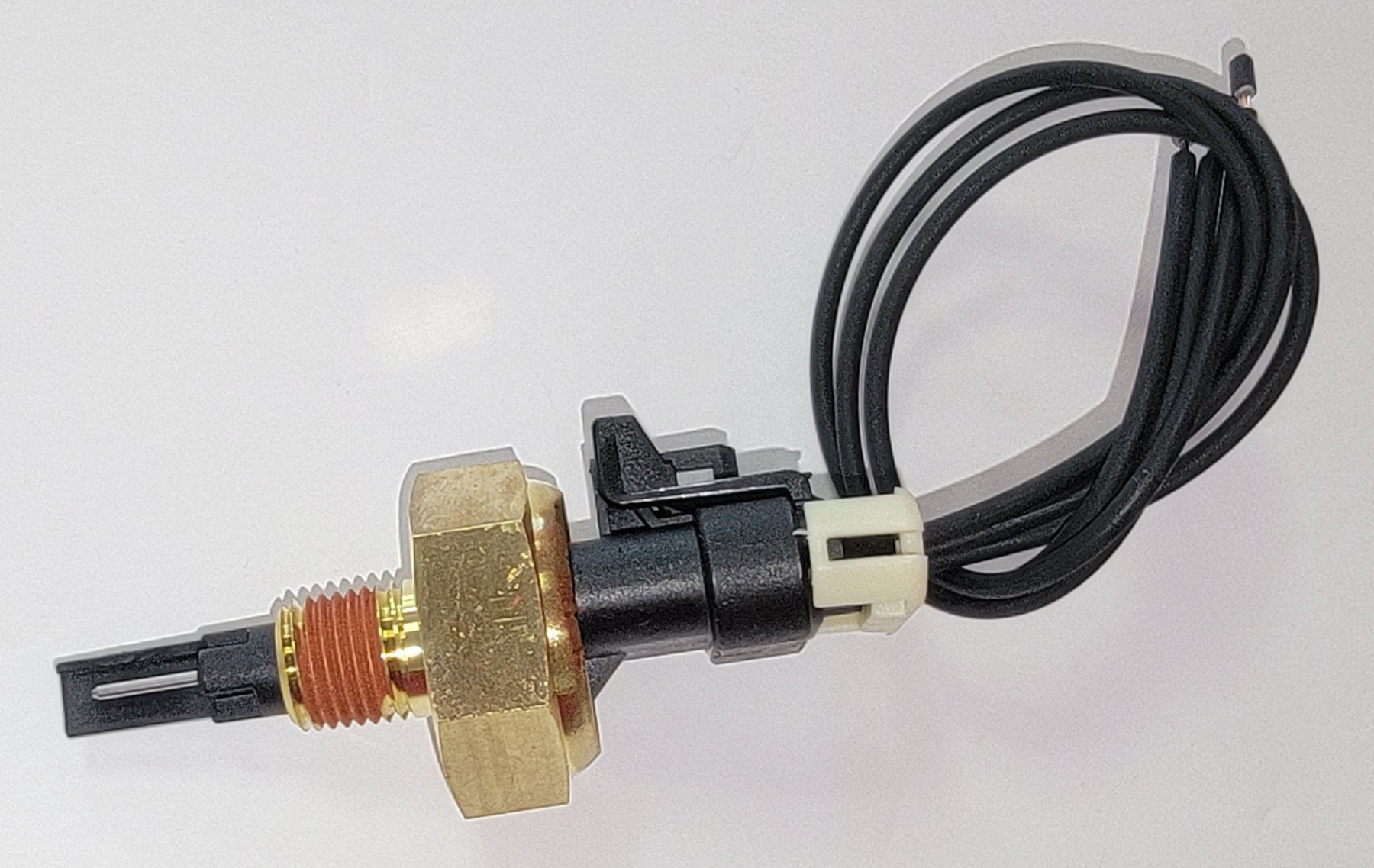

ATP 0200-GG3-008 HD Level Sensor w / pigtail

0200-GG3-008 HD Coolant Level Sensor w / pigtail

Benefits

• Same Day Shipping
• Premium Upgraded Coolant Level Sensor for longer life.

• Includes de pigtail made in the USA
• Next Day Delivery Available @ checkout
• Worldwide International Shipping Rates available @ checkout
• With ATP Pigtail

Specifications

• 3 Pin Connector

• Alert on-board computer system to low coolant Level
• Replacement turns off the low coolant indicator light
• Easily screws onto coolant bottle
• Compatible with Ethylene Glycol and Extended Life Coolants
• Discrete outputs reduce interface development time

• Standard 1/4-18 NPT mounting thread size

• Can be mounted in any orientation in plastic or metal reservoirs

• Operating Temperature: -40°C (-40°F) - 125°C (257°F)

• Operating Pressure: 20 Max PSI

• 1.2 + 0.25 VDC in fluid (output)

• 3.75 - 4.0 VDC in air (output)

• Supply Voltage: 4.75-5.25 VDC max 12.5mA (input)

• Ingress Protection: IP67
