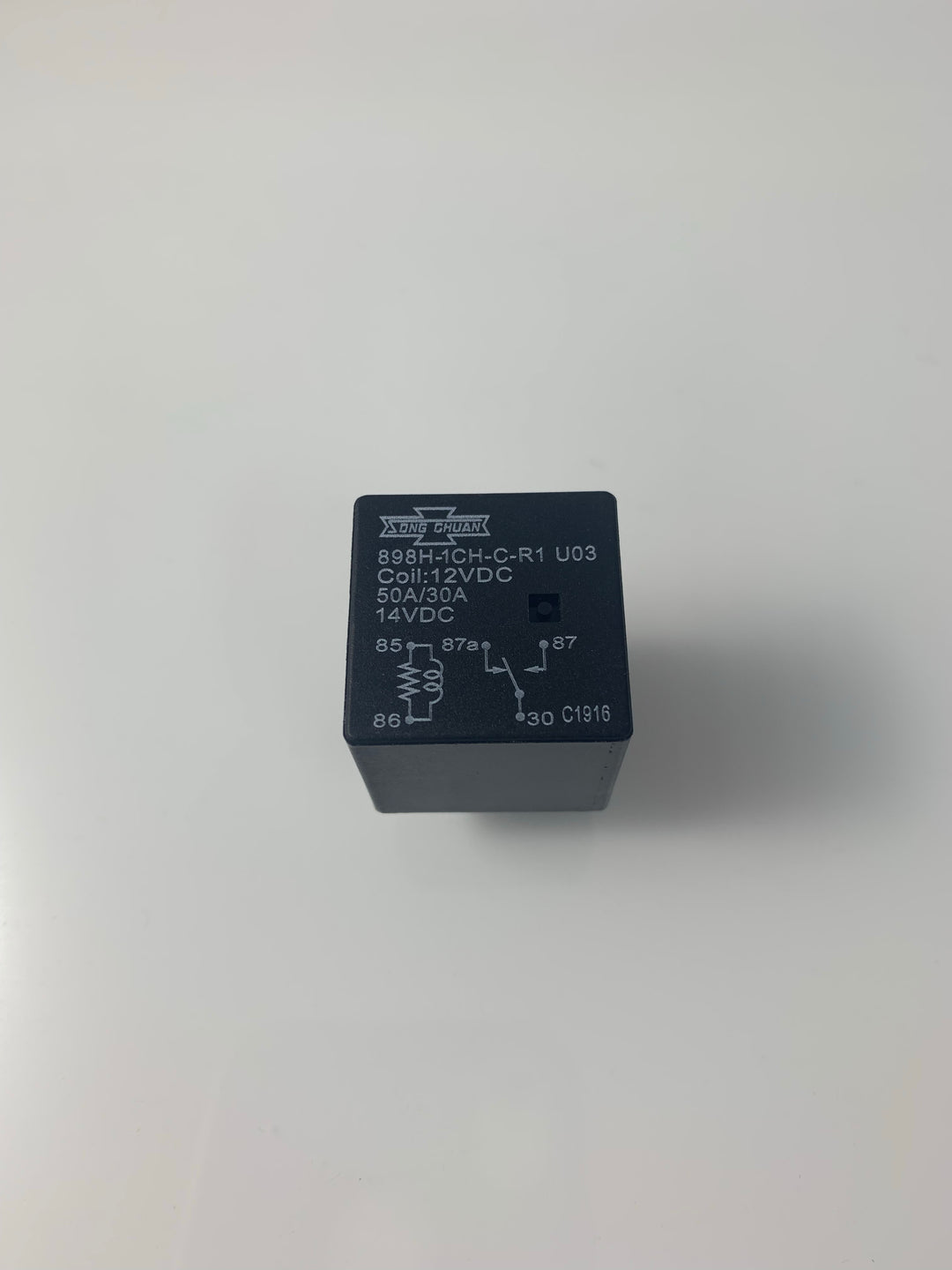

Song Chuan 898H-1CH-C-R1-U03-12VDC Relay

Song Chuan 898H-1CH-C-R1-U03-12VDC Relay

Advance Truck Parts
Price
Regular price $9.49
Regular price Sale price $9.49
Save $-9.49
/
  • Same-day Worldwide Shipping
  • For shipping rates, add to cart
  • Secure payments
Stock: 277
  • In stock, ready to ship
  • Backordered, shipping soon
Shipping calculated at checkout.
Description

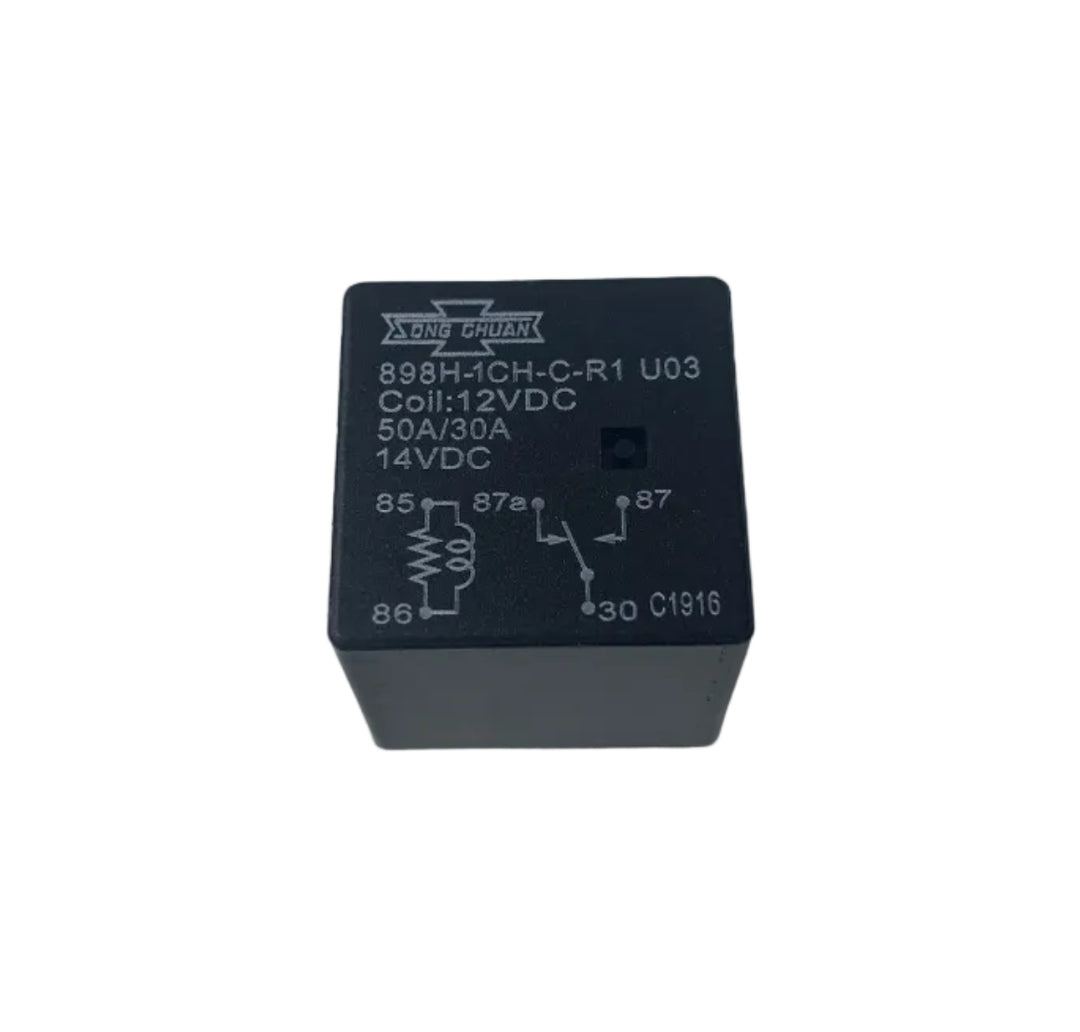

Song Chuan 898H-1CH-C-R1-12VDC | Relay

Benefits

  • Same Day Shipping
  • Song Chuan OEM Relay as picture
  • Next Day Delivery Available @ checkout
  • Worldwide International Shipping Rates available @ checkout



Specifications:

Coil Voltage 12 VDC
Brand Song Chuan
Coil Current 133 mA
Coil Resistance 90 Ohms
Coil Termination Quick Connect (0.250")
Contact Current Rating 50 A
Contact Form SPDT (1 Form C)
Contact Material Silver Tin Oxide (AgSnO)
Contact Termination Quick Connect (0.250")
Factory Pack Quantity 25
Height 25 mm
Length 25.8 mm
Mounting Style Socket
Packaging Tube
Power Consumption 1.6 W
Product Type Automotive Relays
Relay Contact Form 1 Form C (SPDT-NO, NC)
Series 898H
Subcategory Relays
Switching Voltage 28 VDC
Unit Weight 1.41 oz
Width 25.8 mm
Ref Number 898h1chcr1u03
