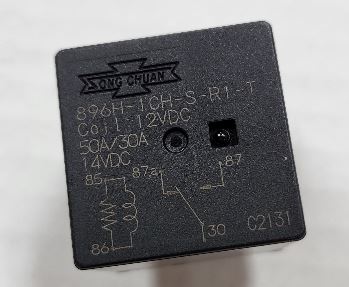

Song Chuan 896H-1CH-S-R1-T-12VDC relay top housing showing the circuit diagram, pin numbers, and specifications

Song Chuan 896H-1CH-S-R1-T-12VDC relay bottom view showing the treated tin-plated quick-connect terminal pins and pin numbering layout

896H-1CH-S-R1-T-12VDC Relay

Name: 896H-1CH-S-R1-T-12VDC Relay
Brand: Advance Truck Parts USA
SKU: WR51023
Price: 6.41 USD
Availability: InStock

Advance Truck Parts USA

Price

$6.41

Save $-6.41

/

Same-day Worldwide Shipping

For shipping rates, add to cart

Secure payments

Stock: 8632

In stock, ready to ship

Description

Song Chuan 896H-1CH-S-R1-T-12VDC Relay

Benefits

Same Day Shipping
Sealed and tested.
New OEM Song Chuan Relay with Tin Plated Terminals for abrasive environment
Next Day Delivery Available @ checkout
Worldwide International Shipping Rates available @ checkout

Specifications:

Coil Voltage	12 VDC
Brand	Song Chuan
Coil Current	133 mA
Coil Resistance	90 Ohms
Coil Termination	Quick Connect (0.250")
Contact Current Rating	50 A
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Termination	Quick Connect (0.250")
Mounting Style	Socket
Packaging	Tube
Power Consumption	1.6 W
Product Type	Automotive Relays
Relay Contact Form	1 Form C (SPDT-NO, NC)
Series	896H
Subcategory	Relays
Switching Voltage	28 VDC
Unit Weight	1.41 oz
Ref Number	896h1chsr1t12Vdc
Terminal Type	Treated Tin Plated Terminal

This Relay is the same as 896H-1CH-C-R1-12VDC but sealed for waterproof and improve Tin Terminals.
