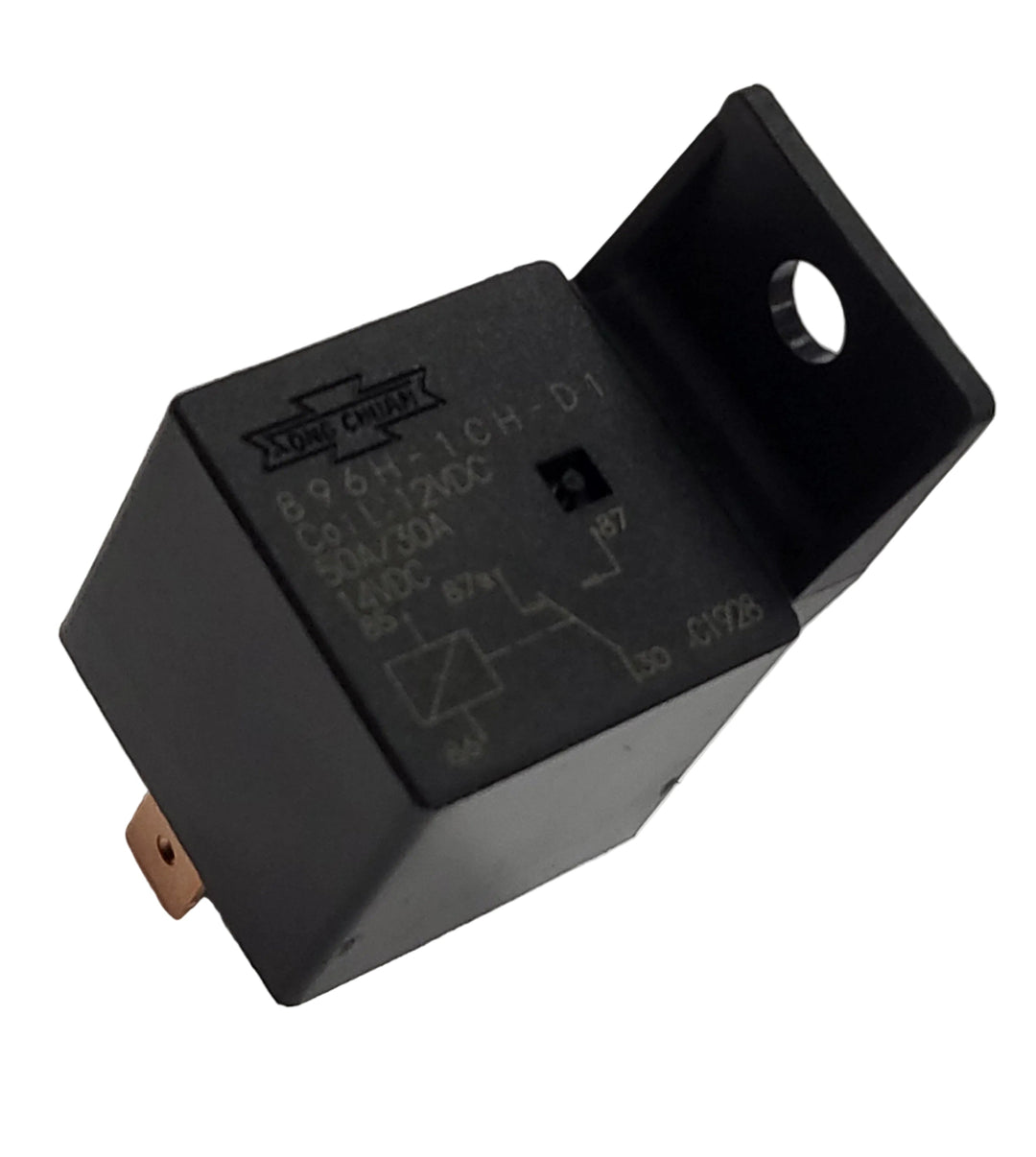

Song Chuan 896H-1CH-D1-12VDC automotive relay showing a clean studio view of the black housing, wiring diagram print, mounting flange with hole, and quick-connect terminal on a plain white background

896H-1CH-D1-12VDC Relay

Name: 896H-1CH-D1-12VDC Relay
Brand: Advance Truck Parts USA
SKU: WR51018
Price: 4.40 USD
Availability: InStock

Advance Truck Parts USA

Price

$4.40

Save $-4.40

/

Same-day Worldwide Shipping

For shipping rates, add to cart

Secure payments

Stock: 55

In stock, ready to ship

Description

Song Chuan 896H-1CH-D1-12VDC Relay

Benefits

Same Day Shipping
Sealed and tested.
New OEM Song Chuan Relay with Flange Cover
Next Day Delivery Available @ checkout
Worldwide International Shipping Rates available @ checkout

Specifications:

Coil Voltage:	12 VDC
Brand:	Song Chuan
Coil Current:	133 mA
Coil Resistance:	90 Ohms
Coil Termination:	Quick Connect (0.250")
Contact Current Rating:	50 A
Contact Form:	SPDT (1 Form C)
Contact Material:	Silver Tin Oxide (AgSnO)
Contact Termination:	Quick Connect (0.250")
Mounting Style:	Socket
Packaging:	Tube
Power Consumption:	1.6 W
Product Type:	Automotive Relays
Relay Contact Form:	1 Form C (SPDT-NO, NC)
Series:	896H
Subcategory:	Relays
Switching Voltage:	28 VDC
Unit Weight:	1.41 oz
Ref Number:	896h1chsr1t12Vdc
Terminal Type:	Treated Tin Plated Terminal

This Relay is the same as 896H-1CH-S1-12VDC with a dust cover instead of a washable.
