DDE Series 60 Oil Pressure Sensor 23532797 Rep 23511176

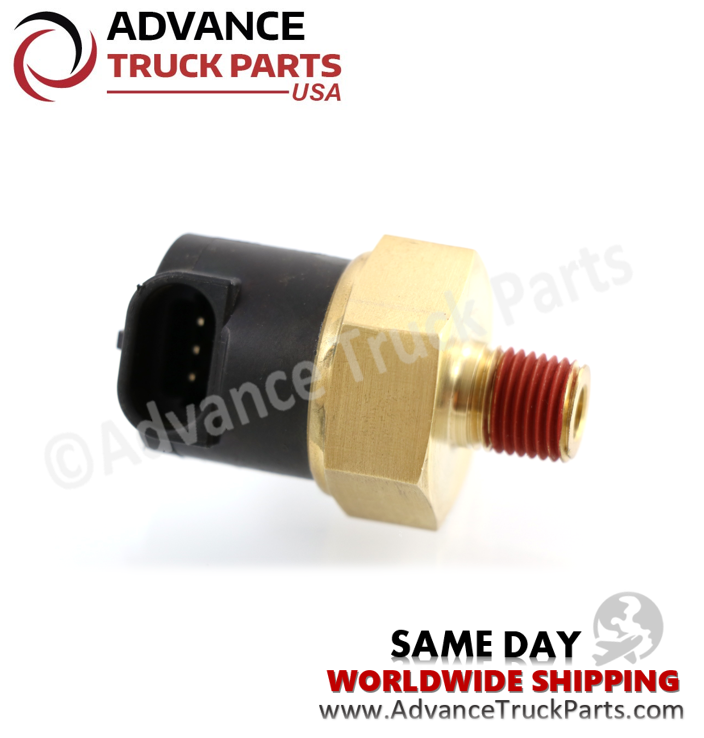

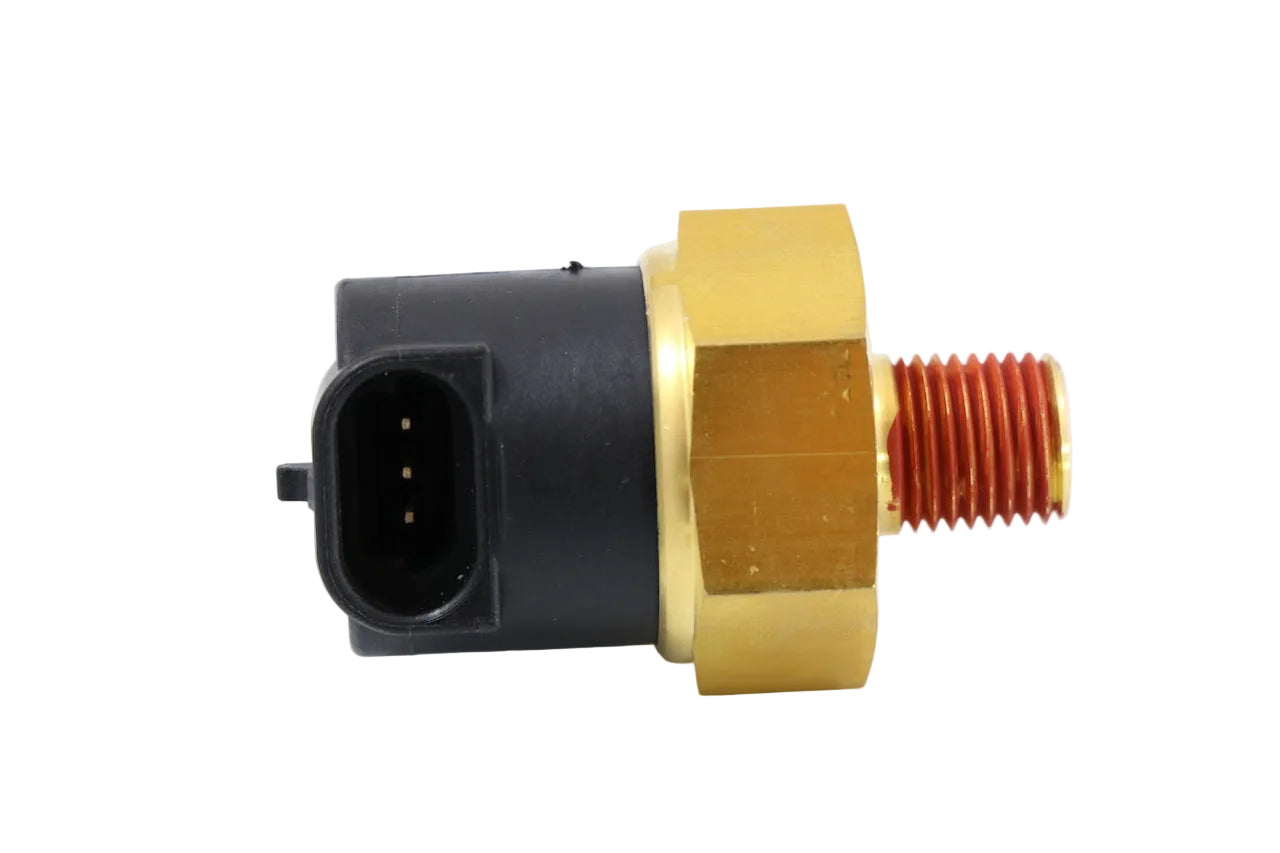

Detroit Diesel Series 60 Oil Pressure Sensor 23532797 | Replaces 23511176 | ATP Premium Aftermarket

Ensure your engine’s protection with the ATP Premium Aftermarket Oil Pressure Sensor (23532797). Designed specifically for the demanding environment of Detroit Diesel Series 50 and Series 60 engines, this sensor provides high-accuracy pressure readings to your ECU.

Faulty oil pressure sensors are a common cause of "Check Engine" lights and "Engine Protection" shutdowns. Our sensor is engineered with high-temp internal components to resist vibration and thermal cycling, offering a reliable, cost-effective alternative to expensive OEM replacements.

Key Features

• Direct OEM Replacement: Manufactured to the exact specifications of Detroit Diesel part number 23532797.

• Heavy-Duty Construction: Features a corrosion-resistant brass housing and a high-impact 3-pin connector.

• Precision Calibration: Delivers accurate 5V signal output to ensure your engine monitoring system receives correct data.

• Sealed Design: Engineered to prevent oil "wicking" into the wiring harness, a common failure point in Series 60 engines.

• Plug-and-Play: No modifications required; fits the existing factory harness.

Detailed Fitment & Applications

This sensor is a primary component for Detroit Diesel heavy-duty engines:

• Series 60: 11.1L, 12.7L, and 14L (DDEC III, IV, and V systems)

• Series 50: 8.5L

• Commonly found in: Freightliner, Kenworth, Peterbilt, and International trucks utilizing Detroit Diesel powerplants.

Cross-Reference Numbers

To ensure you are ordering the correct part, this sensor replaces the following part numbers:

• Detroit Diesel: 23532797, 23511176, 8929184, 23511177

• Other: 500311, PS245, 1S6742

Technical Specifications

Installation Note

Pro Tip: When replacing the oil pressure sensor, inspect your pigtail connector for oil contamination. If oil has leaked into the harness, we recommend replacing the pigtail at the same time to prevent future sensor failure or erratic readings.

Note: For pigtail connector use, click here

Sold Individually

12 months replacement by Advance Truck Parts

Detroit Diesel Engine History

The Detroit Diesel Engine Series 60 was the first HD diesel engine with complete integrated electronic controls in 1987. In 2001, the 14.0L series S60 was introduced. In 2007, DDE discontinued the 12.7L engine.  In 2011, the S60 series was discontinued and replaced by the DD15 series.
