Advance Truck Parts 90° ABS Sensor Kit AL10271914 & R955335
Advance Truck Parts 90-Degree ABS Wheel Speed Sensor Kit is a direct replacement anti-lock brake system sensor engineered to meet OEM specifications. Designed for heavy-duty commercial truck and trailer axle applications, this sensor restores accurate wheel rotational speed data directly to your ABS ECU, clearing active dash fault codes (e.g., ABS Code 136) and preventing unwanted wheel lockup.
Each sensor kit includes a friction spring clip and premium dielectric lubricant for a reliable, corrosion-resistant installation.
Key Features:
-
Direct OEM Fitment: Available in AL10271914 (20" / 0.5m) Haldex style and R955335 (15" / 0.4m) Meritor / WABCO style.
-

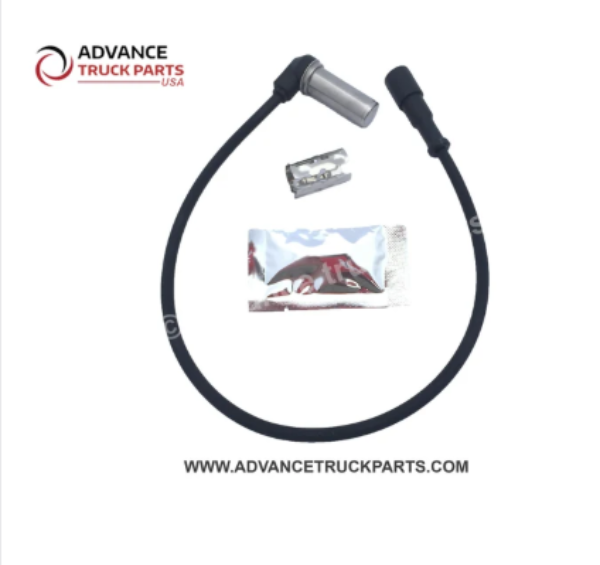

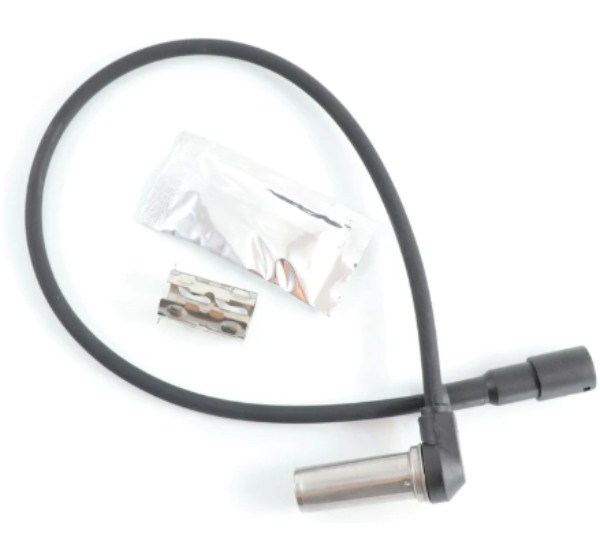

Complete Kit: Includes (1) 90° right-angle sensor, (1) stainless steel retainer sleeve/clip, and (1) packet of dielectric grease.
-
Heavy-Duty Wiring: Built with high-flexibility, oil- and weather-resistant shielded cable to withstand harsh road vibrations and brake-drum heat cycling.
-
Connector: Standard 2-Pin DIN barrel connector for quick, sealed push-in connection to frame extension harnesses.
-
Quality Tested: 100% factory bench-tested for signal resistance and pulse accuracy.
-
Fast Dispatch: Same-day shipping available; 1-hour local curbside pick-up at our Sunrise, FL location.
Specifications:
| Sensor Head Style |
90° Right Angle |
| Connector Type |
2-Pin DIN (Push-In) |
| Variant 1 (AL10271914) |
20 Inches (1.6 ft / 500 mm) Lead Length |
| Variant 2 (R955335) |
15.7 Inches (1.3 ft / 400 mm) Lead Length |
| Package Includes |
(1) ABS Sensor, (1) Retainer Clip, (1) Dielectric Grease Packet |
Cross References:
AL10271914: 20-inch nominal lead / 0.5 m:
-
Haldex / Midland: AL10271914, MIDAL10271914, 364094001, 102719, AL10271910, HDXAL10271914
-
Dorman HD: 970-5102, 9705102, abs-271914
-
BWP-NSI: ABS0003
-
Dayton: RQ970-5102, abs-271914
-
Mack: 5396-AL10271914
-
Navistar / International: ZZAL10271914
-
Volvo: MIDAL10271914
-
Freightliner: HDXAL10271914, 364094001
-
TruckAC:T9570
R955335: 16-inch overall length / 0.4 m, often described as a 12-inch lead:
-
Meritor / WABCO: R955335, TDAR955335, 8235-R955335, 4410309072, 441 030 907 2, S4410328080, S441 032 808 0, 4410329210, PRO0320000
-
Automann: 577.A5335, AM577A5335
-
Dorman HD: 970-5008,
-
Haldex: AL10271915, 364094001
-
Dayton Parts: GEN2-5335, GEN2-R955335
-
Freightliner / Alliance: ABP N44 10309072, 364094001
-
Volvo / Mack: 85106607, 85105998
-
GlobeTech: GTAR955335
