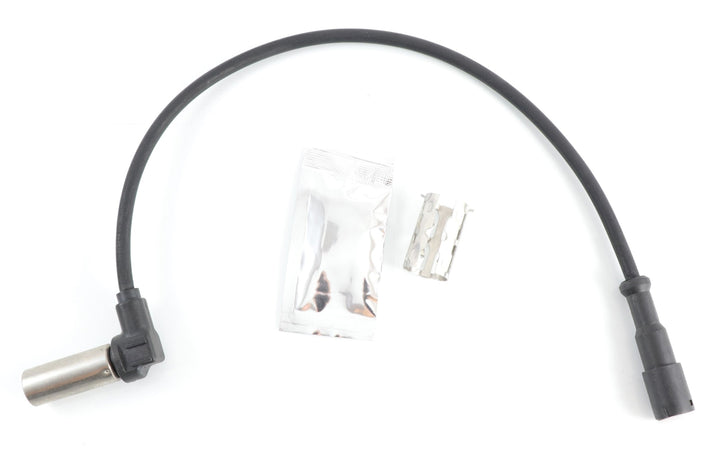

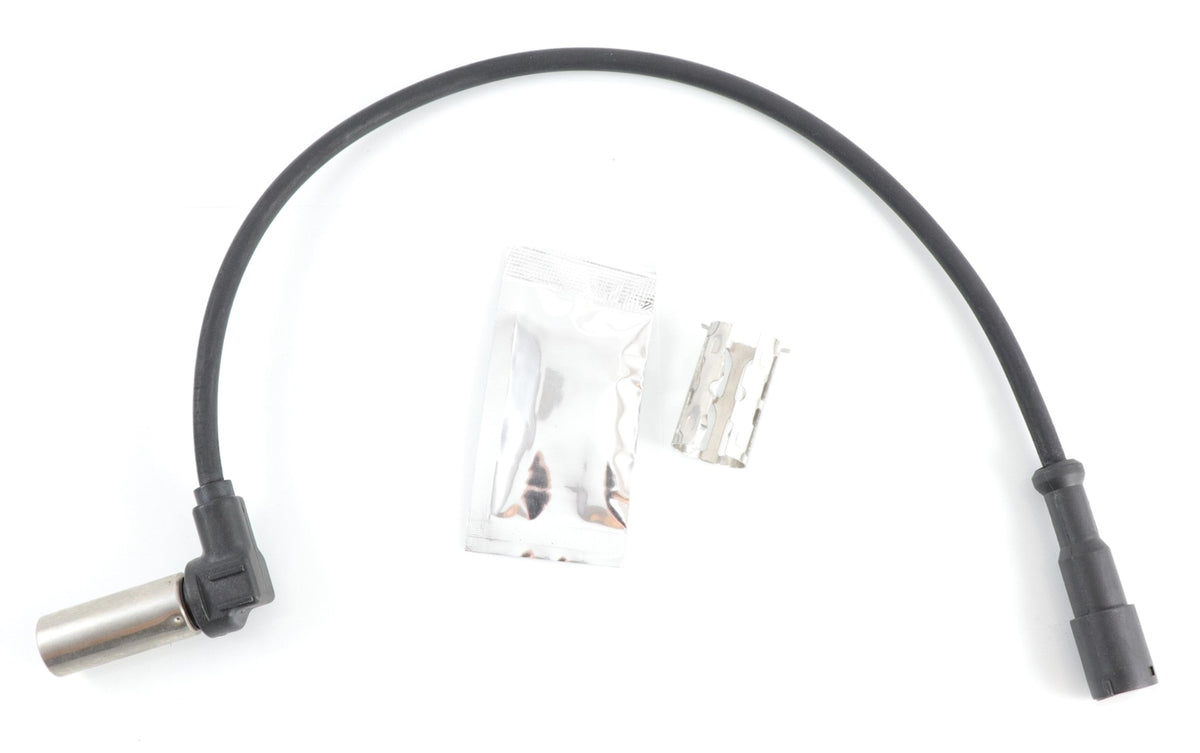

Advance Truck Parts USA W061016 90-degree right angle ABS wheel speed sensor kit showing 15-inch lead wire, round bayonet connector, grease pouch, and retaining bushing clip

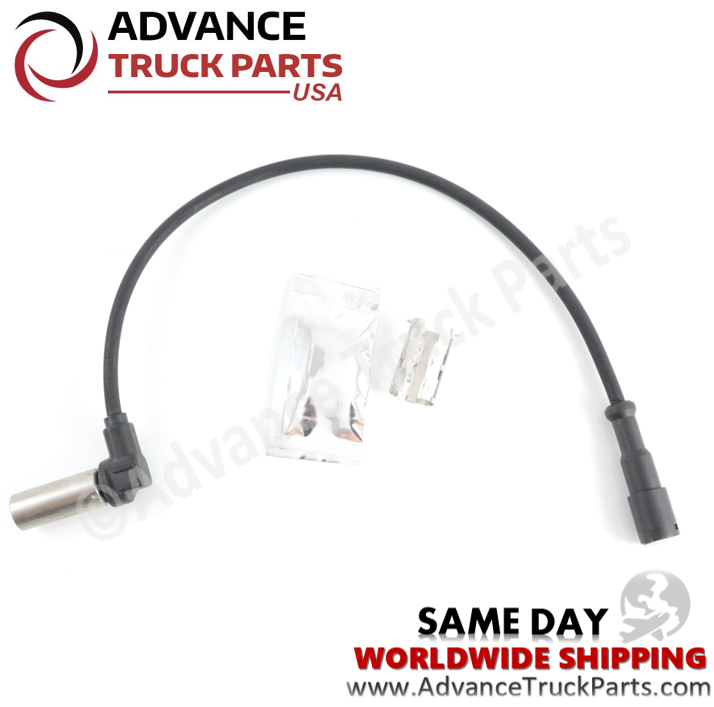

Advance Truck Parts USA Branded overhead view of the 90-degree right-angle ABS wheel speed sensor assembly with installation accessories

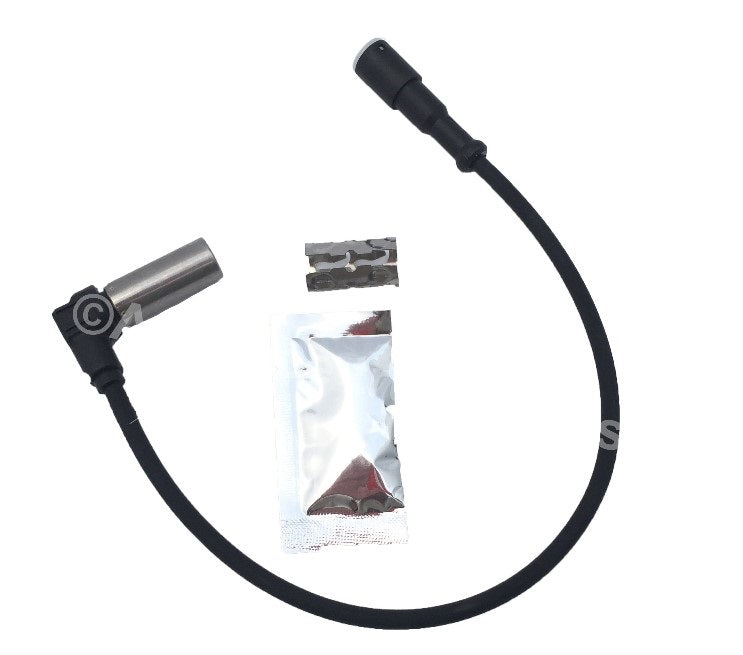

Advance Truck Parts USA Right-angle metal sensor tip, curved wire lead, and 2-pin DIN style connector layout with grease packet and stainless retaining clip

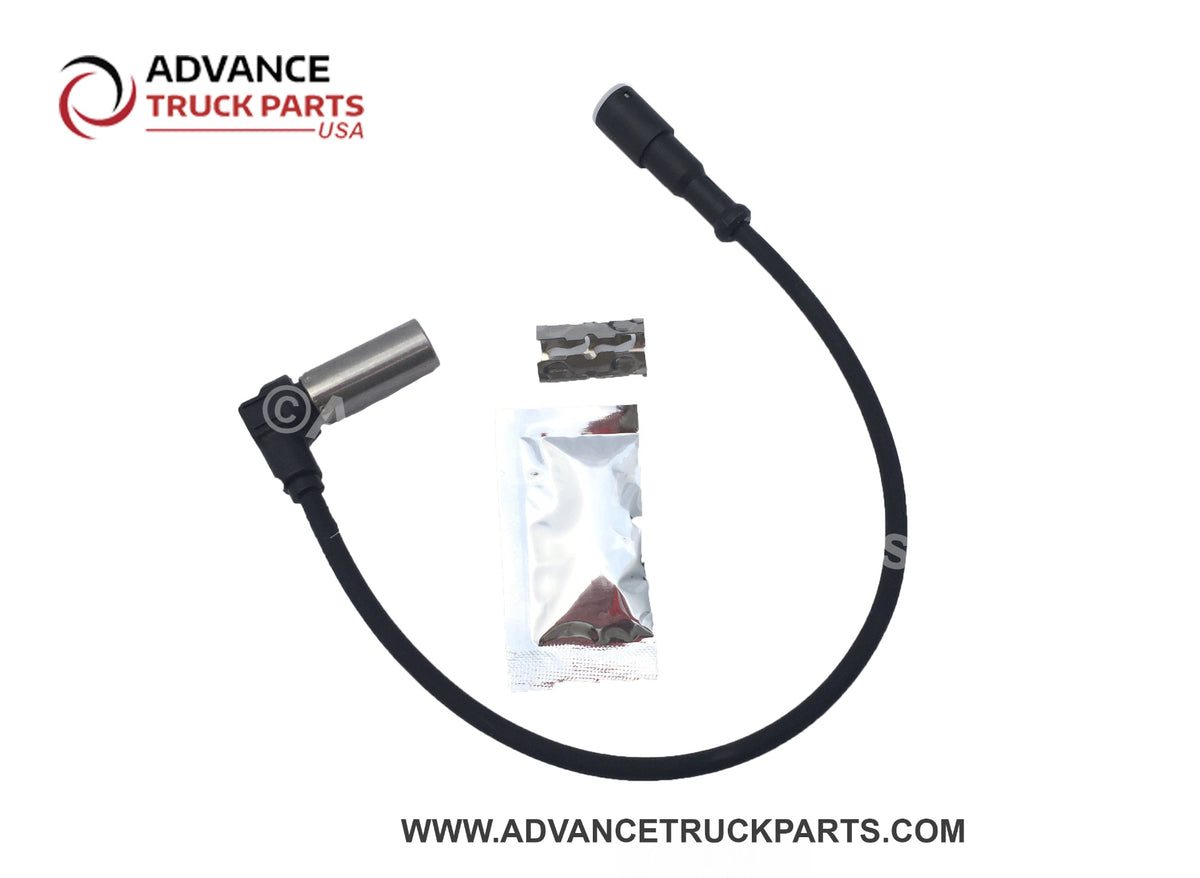

Advance Truck Parts USA Complete commercial ABS sensor assembly displaying right-angle barrel probe, sealed connector end, and mounting hardware components

ATP W061016 Right Angle ABS Sensor Kit Replaces Bendix 801544 Freightliner BW801544 Mack 745-801544

Name: ATP W061016 Right Angle ABS Sensor Kit Replaces Bendix 801544 Freightliner BW801544 Mack 745-801544
Brand: Advance Truck Parts USA
SKU: W061016
Price: 20.00 USD
Availability: InStock

Advance Truck Parts USA

Price

$20.00

Save $-20

/

Same-day Worldwide Shipping

For shipping rates, add to cart

Secure payments

Stock: 44

In stock, ready to ship

Need It Fast? Order Within

00Hours

00Minutes

00Seconds

Ships Today - Order before 5:30 PM ET for same-day shipping. Next Day Air available at checkout.

Support hours: Monday–Friday, 9:30 AM–6:30 PM ET

Description

Advance Truck Parts W061016 Right Angle ABS Sensor Kit Replaces Bendix 801544 Freightliner BW801544 Mack 745-801544

The Advance Truck Parts W061016 is a commercial-grade 90-degree right-angle ABS wheel speed sensor kit designed to provide accurate rotational speed signals to heavy-duty anti-lock braking systems. Engineered as a direct OEM replacement for Bendix, Freightliner, Mack, Volvo, and Navistar commercial steer and drive axles, preventing wheel lockup and maintains vehicle control during heavy braking.

Key Specifications

Brand: Advance Truck Parts USA
Part / SKU Number: W061016
Sensor Head Design: 90° Right Angle
Lead Wire Cable Length: 15 Inches (Replaces OE 12" to 15" routings)
Connector Type: 2-Pin Round Bayonet / DIN Style
Kit Contents: (1) 90° ABS Wheel Speed Sensor, (1) Stainless Steel Retaining Bushing Clip
Vehicle Class: Class 7 & Class 8 Heavy-Duty Trucks, Tractors, and Commercial Trailers

OEM Cross-Reference & Interchange

Manufacturer / Make	Interchange Part Number
Advance Truck Parts USA	W061016
Bendix	801544, BW801544, BX801544, 801544BXW, 300083, BW300083, BX300083, 800573, BW800573, 5008455, 65187
Freightliner / Sterling	BW801544, BW 801544, BEN801544
Mack	745-801544, 745801544, 745-300083
Volvo	BW300083, BW 300083, 300083, 85107567
Navistar / International	BX801544, BAN801544, ZAC801544
Dorman HD Solutions	970-5109, 970-5008, 970-5008CD, ABS-801544
Automann	577.A801544, AM577A801544
Genuine Newstar	BER-801544, S-22896, S22896
Omega / MEI	ABS127, 00780250248147, 1814407
WABCO	S4410309072
