Horton 993653
1685132c92

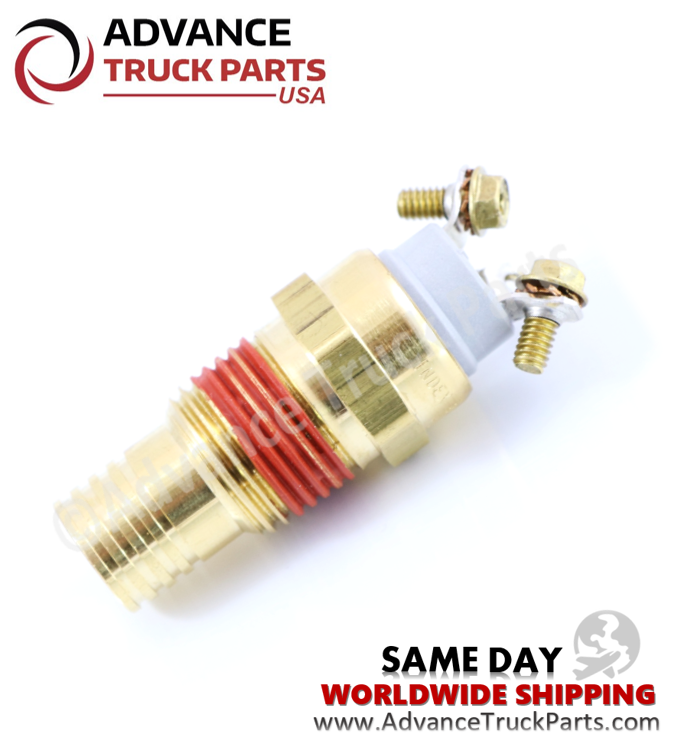

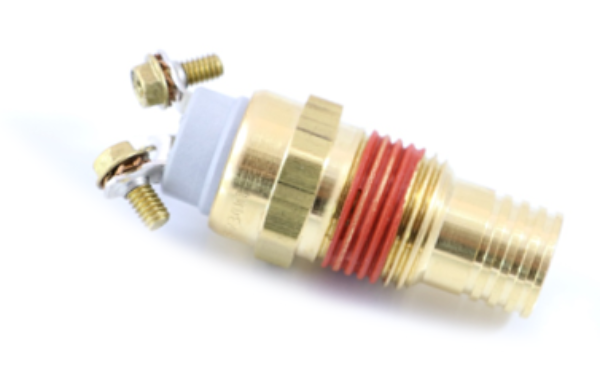

Horton 993653 1685132C92 8037026P 983659 Fan Switch 195 degrees

Regular price
$54.95
Sale price
$54.95
Order by 6:00 PM E.T. for Same Day USPS First Class Shipping | Next Day available @ checkout

Stock: 170

Horton 993653 1685132C92 983659 8037026P Thermal Switch 195 degrees

Benefits

  • Same Day Shipping
  • USA Manufactured Thermal Switch
  • Next Day Delivery Available @ checkout
  • Worldwide International Shipping Rates available @ checkout


Specifications

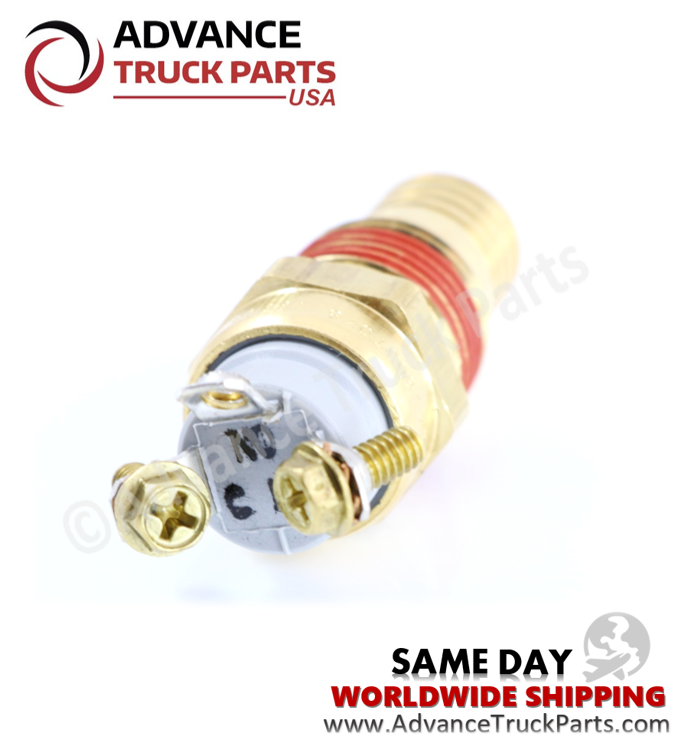

  • 195°F, Normally Open Screw Terminals, 1/2 NPTF Housing, Two 8-32 threaded tabs. To connect as a normally open switch used Screw Terminals "C" and "NO"
  • 188°F Reset Point
  • Heavy duty temperature switch. Made in the USA. Fast, stable and accurate circuit control for up to a million or more cycles. Proven performance in severe, high vibration environments. Applications include: temperature control, indication, warning, alarm and monitoring for engine cooling, fans, shutters, transmissions, hydraulic fluid, heating elements, fan controls and more.

Applications

  • Some Applications include Cummins & International Universal Components / peterbilt / Paccar / Freightliner Navistar Universal / DT408 (93-97) DT466 (Yr: 93-97) DT 466E HEUI (Yr: 93-99) / DT530 (Yr: 93-97) DT530E HEUI (Yr: 93-98) Engines.

Replaces

  • Horton 993653 983659 15957 993653 993620 993646 993649
  • Navistar 1685132C92 1612064C91
  • 8037026 8037026P
