ATP F7078 Ford 1 Wire Alternator Conversion Kit by Transpo

ATP F7078  Ford 1 Wire Alternator Conversion Kit by Transpo

Benefits

• Same Day Shipping
• Durable Heavy Duty Voltage Regulator conversion kit for long life
• Next Day Delivery Available @ checkout
• Worldwide Shipping rates available at checkout

Specifications

• F7078 is a small voltage and useful conversion kit that eliminates and simplify your alternators wires going to the alternator
• Used with standard Ford 1G Series 45-65 Amps
• Used with External Regulator / External Fan Alternators
• 12 Volt, B-Circuit, 14.2 Vset
• Well Built kit eliminate all messy wire and boxes
• Install on the back of the alternator
• 3:1-wire hook-up
• Adjustable Voltage dial

• Stator excited

• Low stand by Drain

Dimensions:

Notes

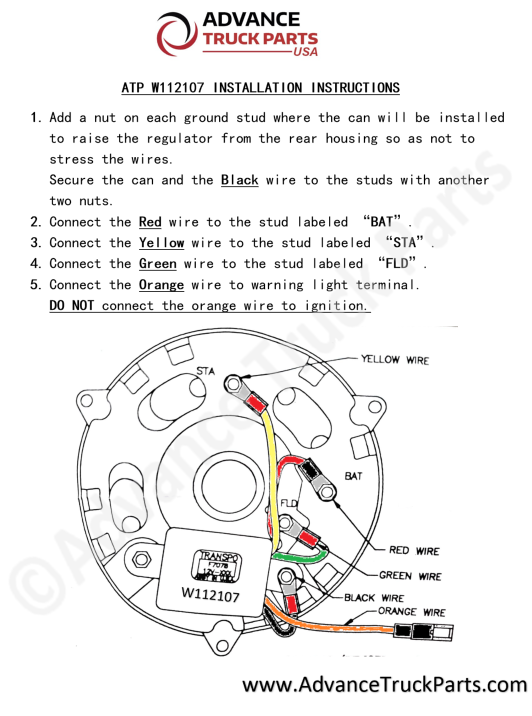

• NOTE 1: For Use With Later Design "Phase Connection" STA Terminals

• NOTE 2: If Used On Older "Y-Neutral" STA Terminals, Connect Yellow Directly To One Of The Stator/Rectifier Solder Joints

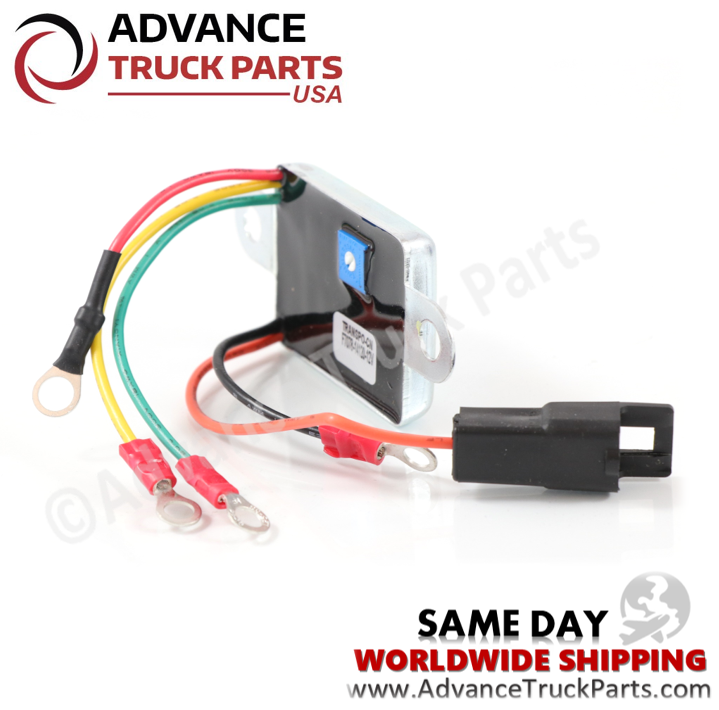

• NOTE 3: Wires:
• YELLOW - Stator,
• GREEN - Field, RED - B+
• BLACK - Ground
• ORANGE - optional Indicator Light
•


• 12 months replacement warranty by Advance Truck Parts

Applications

• American Motors (1976-1978)
• Ford (1969-1985)
• Lincoln (1972-1978)
• Mercury (1972-1985)
