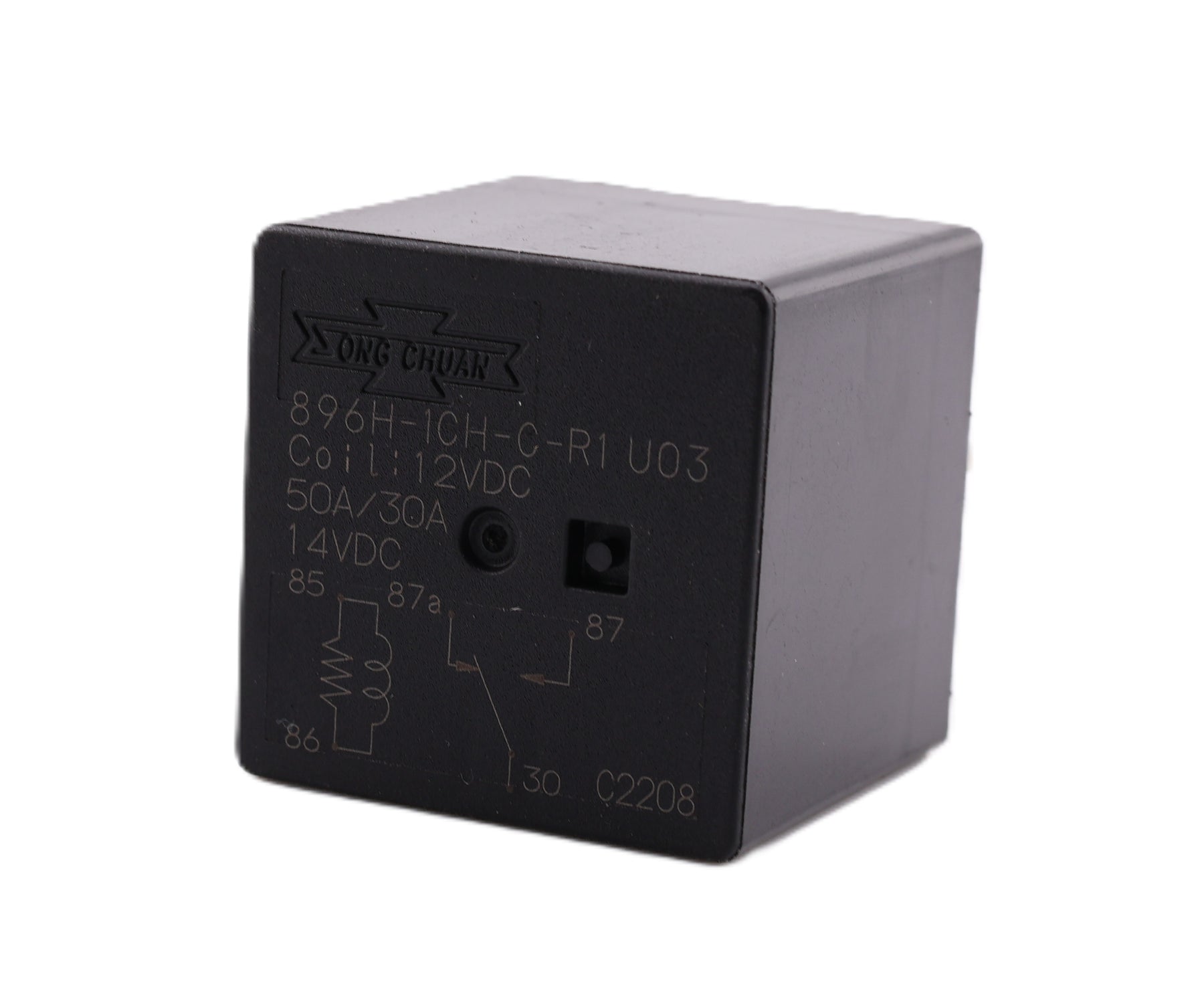

Song Chuan 896H-1CH-C-R1-12VDC | ISO 280 Micro Relay
Song Chuan 896H-1CH-C-R1-12VDC | ISO 280 Micro Relay
Song Chuan 896H-1CH-C-R1-12VDC | ISO 280 Micro Relay
song-chuan-896h-1ch-c-r1-12vdc-896h1chcr1u03

896h 1ch c r1 u03 12vdc relay by Song Chuan

Regular price
$3.80
Sale price
$3.80
Order by 6:00 PM E.T. for Same Day USPS First Class Shipping | Next Day available @ checkout

Stock: 9401

896h 1ch c r1 u03 12vdc OEM Relay by Song Chuan

Benefits

  • Same Day Shipping
  • OEM Relay as picture
  • Next Day Delivery Available @ checkout
  • Worldwide International Shipping Rates available @ checkout

 Note: Also can use upgraded HD Relay Sealed with Tin Terminals 896H-1CH-S-R1-T-12VDC Relay

Specifications:

Coil Voltage 12 VDC
Brand Song Chuan
Coil Current 133 mA
Coil Resistance 90 Ohms
Coil Termination Quick Connect (0.250")
Contact Current Rating 50 A
Contact Form SPDT (1 Form C)
Contact Material Silver Tin Oxide (AgSnO)
Contact Termination Quick Connect (0.250")
Factory Pack Quantity 25
Height 25 mm
Length 25.8 mm
Mounting Style Socket
Packaging Tube
Power Consumption 1.6 W
Product Type Automotive Relays
Relay Contact Form 1 Form C (SPDT-NO, NC)
Series 896H
Subcategory Relays
Switching Voltage 28 VDC
Unit Weight 1.41 oz
Width 25.8 mm
Ref Number 896h 1ch c r1 u03 12vdc
