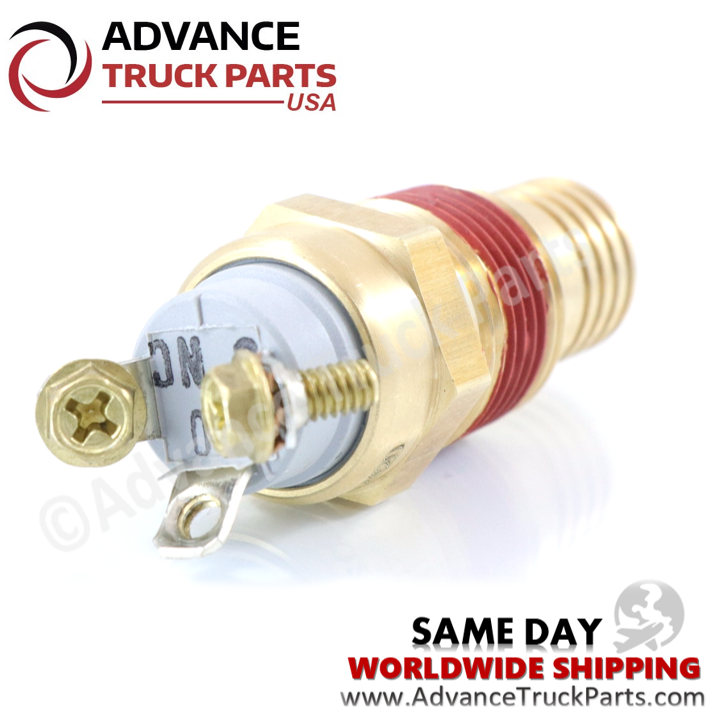

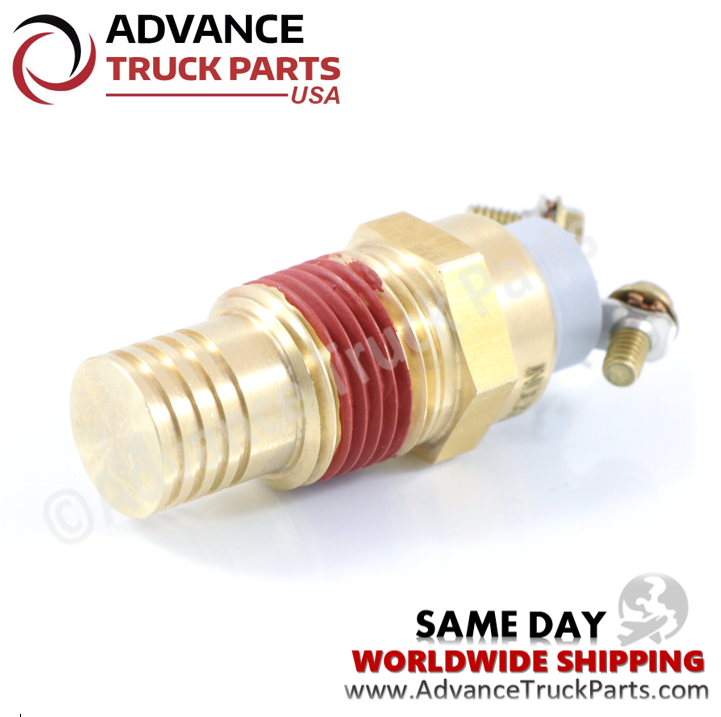

ATP Thermal Fan Solenoid Switch 205 Deg 8037055 8037055P
ATP Thermal Fan Solenoid Switch 205 Deg 8037055 8037055P

ATP Thermal Fan Solenoid Switch 205 Deg 8037055 8037055P

Regular price
$62.20
Sale price
$62.20
Order by 6:00 PM E.T. for Same Day USPS First Class Shipping | Next Day available @ checkout

Stock: 167

Index 8037055 8037055P Temperature Control Fan Switch 205 deg F.

Benefits

  • Same Day Shipping

  • Index Manufactured Thermal Switch

  • Next Day Delivery Available @ checkout

  • Worldwide International Shipping Rates available @ checkout



Specifications

  • 205°F, Thermal Control Fan Switch. 1/2 NPTF Housing, Three 8-32 threaded tabs.

  • To connect as a normally open   switch used Screw Terminals "C" and "NO"

  • To connect as a normally closed switch used Screw Terminals "C" and "NC"

  • Heavy duty temperature switch. Made in the USA. Fast, stable and accurate circuit control for up to a million or more cycles. Proven performance in severe, high vibration environments. Applications include: temperature control, indication, warning, alarm and monitoring for engine cooling, fans, shutters, transmissions, hydraulic fluid, heating elements, fan controls and more.

Applications

  • Some Applications include Cummins & International Universal Components / Navistar Universal / DT408 (93-97) DT466 (Yr: 93-97) DT 466E HEUI (Yr: 93-99) / DT530 (Yr: 93-97) DT530E HEUI (Yr: 93-98) Engines.

Replaces

  • Navistar 1685171C92

  • 8037055 8037055P

  •  Red Dot 71R-6448, Red Dot RD-5-10780-0P

  • Volvo 394614

 For Additional Temperature switches from 180 - 220 Deg  CLICK HERE
