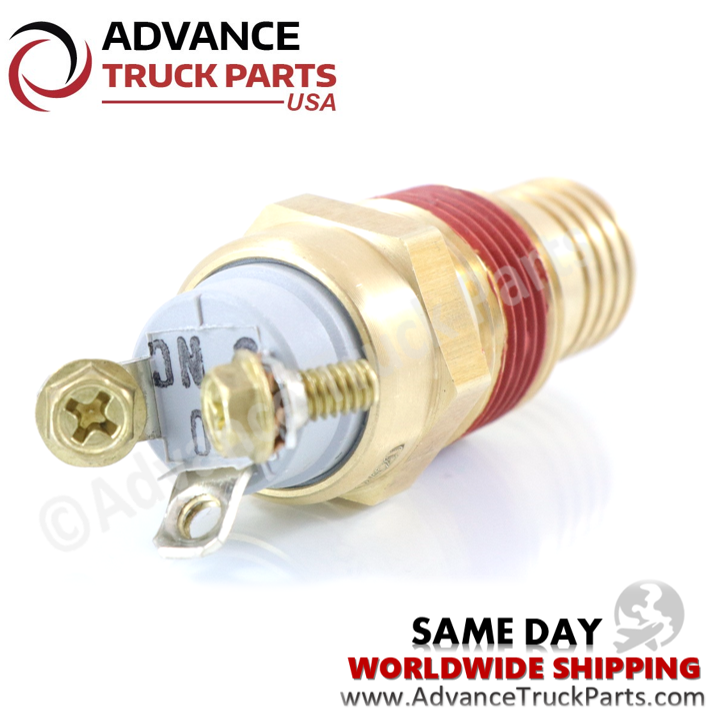

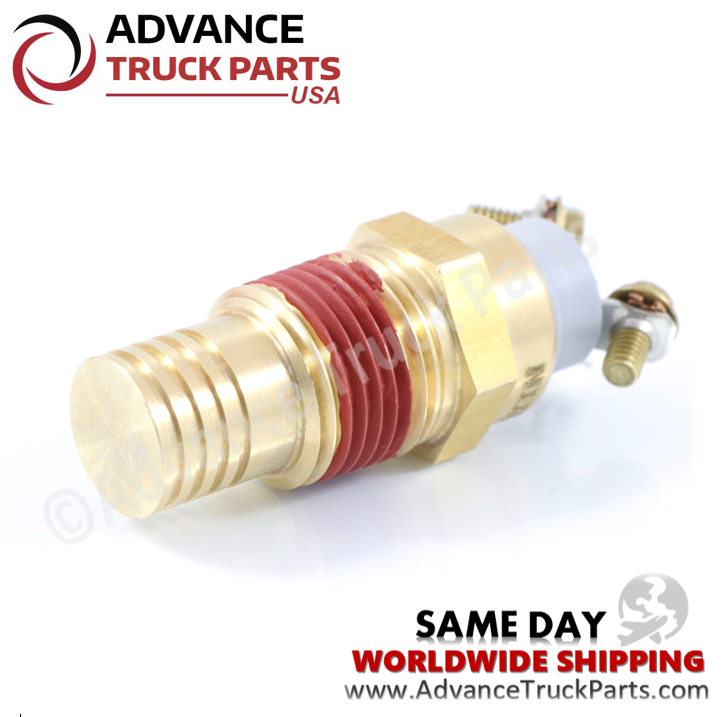

8037032  8037032P Temperature Control Fan Switch 205 deg F.
8037032  8037032P Temperature Control Fan Switch 205 deg F.

8037032 8037032P Temperature Control Fan Switch 205 deg F.

Regular price
$62.20
Sale price
$62.20
Order by 6:00 PM E.T. for Same Day USPS First Class Shipping | Next Day available @ checkout

Stock: 177

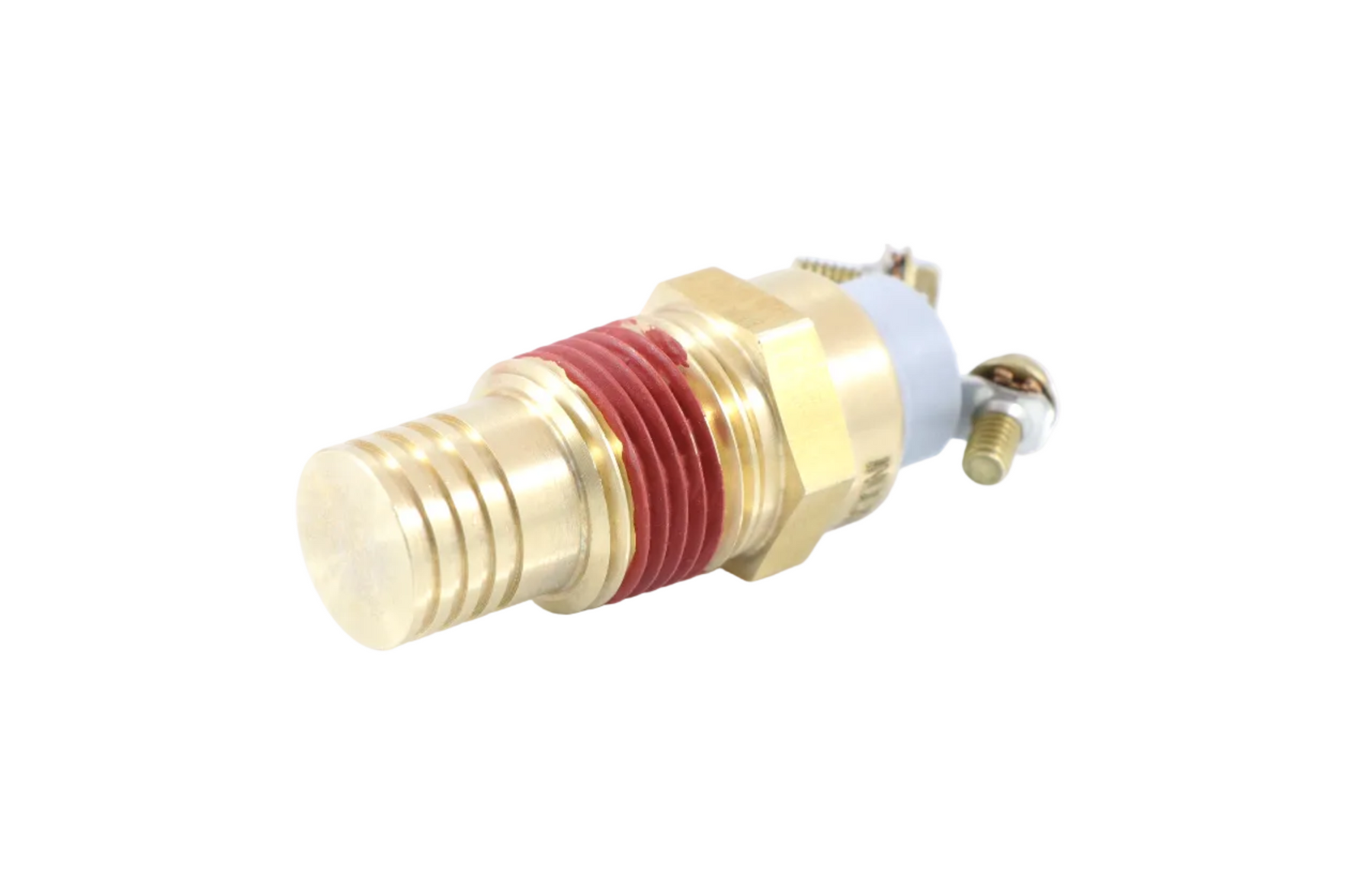

Index 8037032  8037032P Temperature Control Fan Switch 205 deg F.

Benefits

  • Same Day Shipping

  • Index Manufactured Dual Thermal Switch with NO and NC functions.

  • Next Day Delivery Available @ checkout

  • Worldwide International Shipping Rates available @ checkout



Specifications

  • 205°F, Thermal Control Fan Switch. 1/2 NPTF Housing, Three 8-32 threaded tabs.

  • To connect as a normally open   switch used Screw Terminals "C" and "NO"

  • To connect as a normally closed switch used Screw Terminals "C" and "NC"

  • The  8037032 is NC which means you need to use only terminals mark "C" and "NC".
  • Heavy duty temperature switch. Made in the USA. Fast, stable and accurate circuit control for up to a million or more cycles. Proven performance in severe, high vibration environments. Applications include: temperature control, indication, warning, alarm and monitoring for engine cooling, fans, shutters, transmissions, hydraulic fluid, heating elements, fan controls and more.

Applications

  • Some Applications include Cummins & International Universal Components / Navistar Universal / DT408 (93-97) DT466 (Yr: 93-97) DT 466E HEUI (Yr: 93-99) / DT530 (Yr: 93-97) DT530E HEUI (Yr: 93-98) Engines.

Replaces

  • O41ACB095A, 650813, 1002-07393-33, 993607,
    681-545-31-24, RF993607, 993621, 15940 993607,
    B-14013, 8037196, TM501C2205NC, 3607 1002-05825-33, 3912993607,
    1MR2455P2, MBIRRF993607, TWD993607
