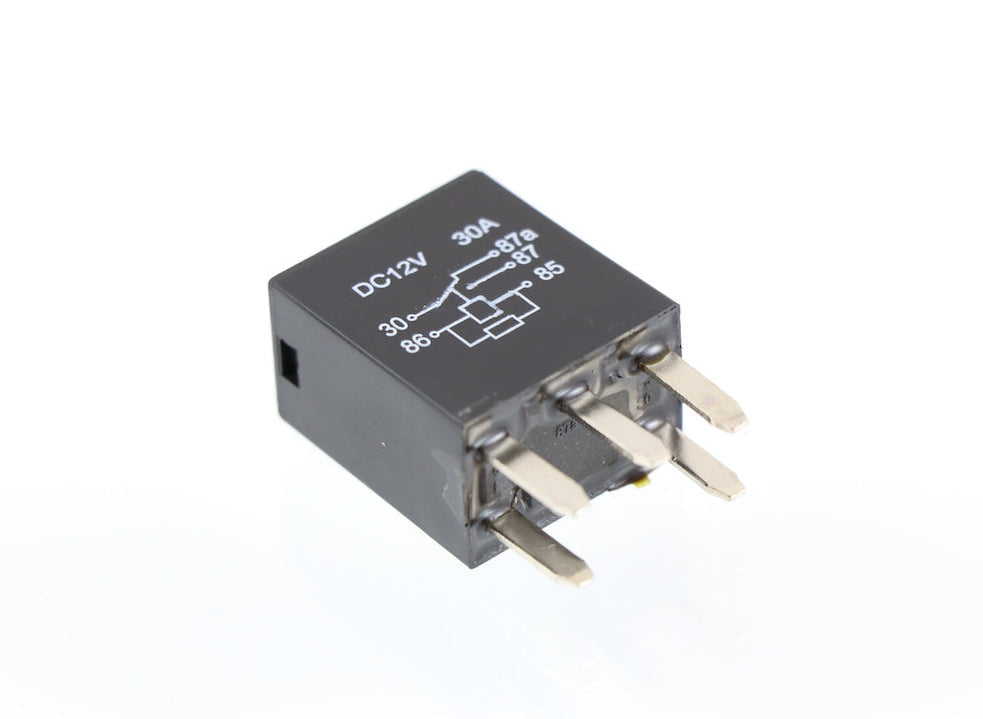

Advance Truck Parts USA Song Chuan 301-1C-C-R1-U01-12VDC micro relay with resistor featuring 5 terminal pins and a top-printed wiring schematic

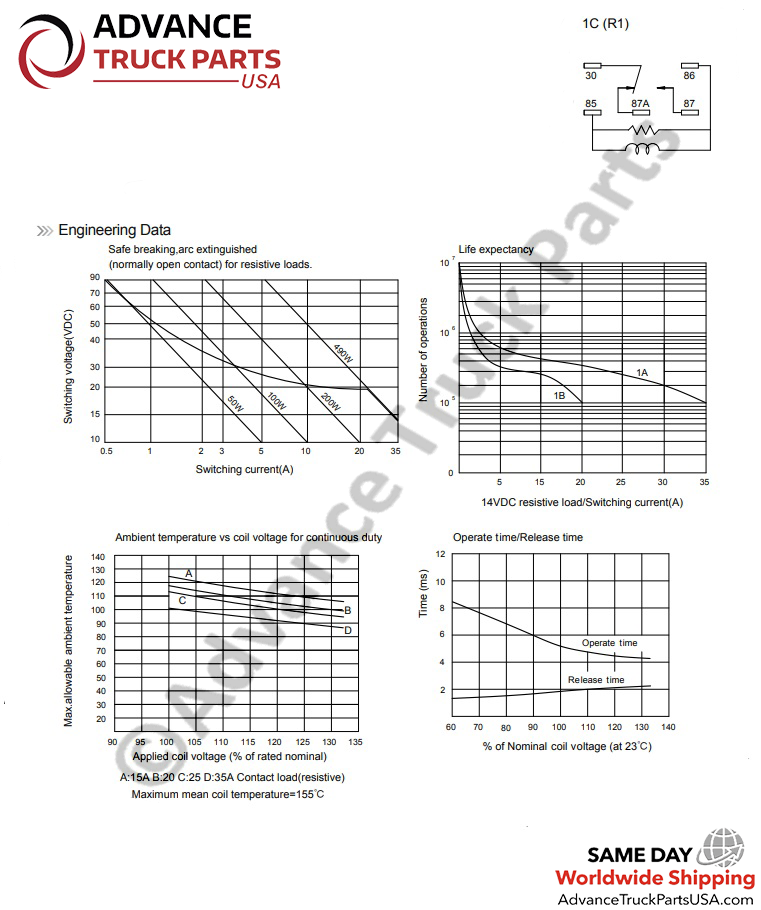

Advance Truck Parts USA Song Chuan 301 series technical datasheet showing the 1C (R1) electrical schematic, switching voltage curves, life expectancy charts, and operating time graphs

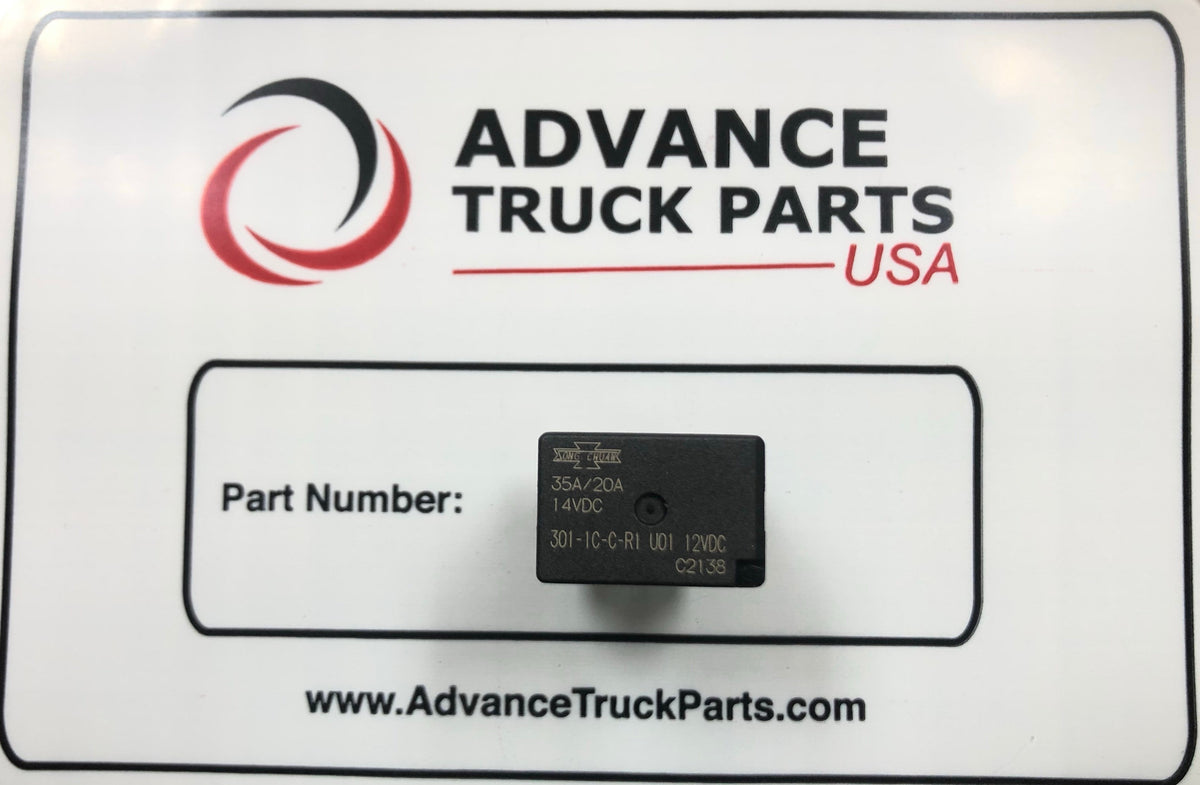

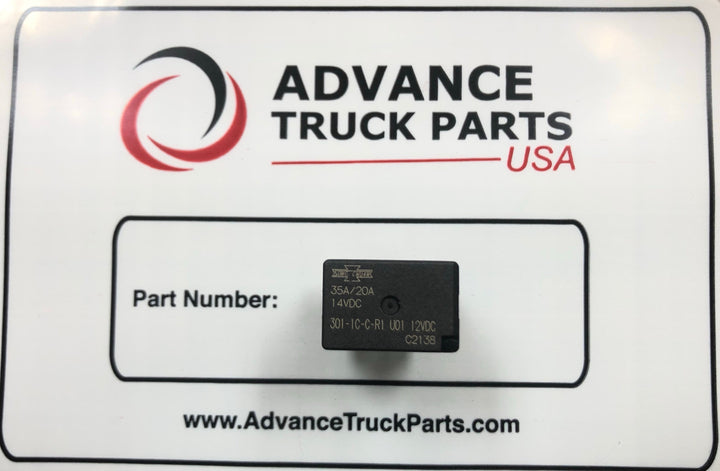

Advance Truck Parts USA studio view showcasing the Song Chuan micro relay next to its part number label

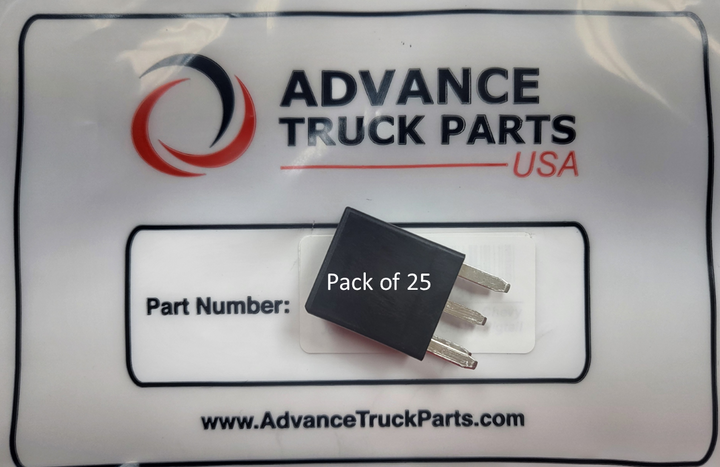

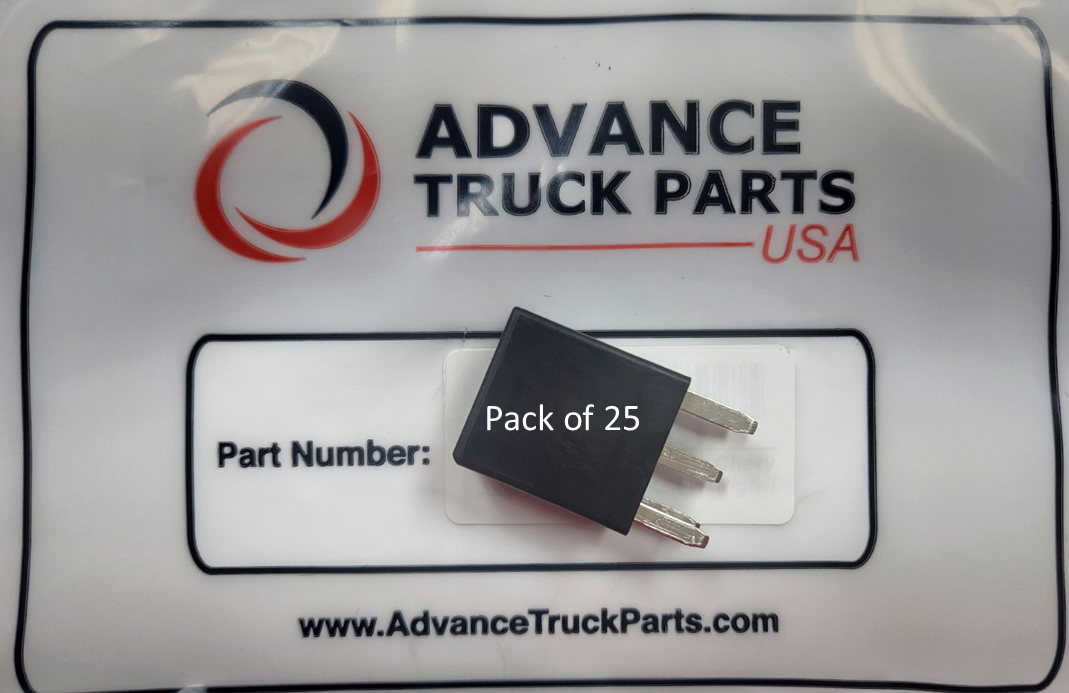

Advance Truck Parts USA packaging bag displaying a pack of 25 Song Chuan micro relays

Advance Truck Parts USA branded bulk cardboard shipping box containing Song Chuan micro relays with a quantity of 250 pieces

301-1C-C-R1-U01-12VDC

Name: 301-1C-C-R1-U01-12VDC
Brand: Advance Truck Parts USA
SKU: WR51019
Price: 3.71 USD
Availability: InStock

Advance Truck Parts USA

Price

$3.71

Save $-3.71

/

Same-day Worldwide Shipping

For shipping rates, add to cart

Secure payments

Stock: 9225

In stock, ready to ship

Need It Fast? Order Within

00Hours

00Minutes

00Seconds

Ships Today - Order before 5:30 PM ET for same-day shipping. Next Day Air available at checkout.

Support hours: Monday–Friday, 9:30 AM–6:30 PM ET

Description

Song Chuan 301-1C-C-R1-U01-12VDC Micro Relay with resistor

Benefits

Same Day Shipping
Song Chuan Relay as picture
Next Day Delivery Available @ checkout
Worldwide International Shipping Rates available @ checkout

Description

Package Qty: 1 Song Chuan Relay
Song Chuan Part Number 301-1C-C-R1-U01-12VDC

301-1C-C-R1-U01-12VCD Schematic

301-1c-c-r1-u01-12vdc schematic

For Larger quantities, please contact us.

Datasheet

Alternative:

Specifications:

Manufacturer	Song Chuan
Product Category	Automotive Relays
RoHS	Details
Coil Voltage	12 VDC
Relay Contact Form	1 Form C (SPDT-NO, NC)
Mounting Style	Socket
Contact Material	Silver Tin Oxide (AgSnO)
Series	301
Contact Form	SPDT (1 Form C)
Power Consumption	1.2W
Brand	Song Chuan
