301-1C-C-D1-U05-12VDC Relay

Regular price
$3.17
Sale price
$3.17
Order by 6:00 PM E.T. for Same Day USPS First Class Shipping | Next Day available @ checkout

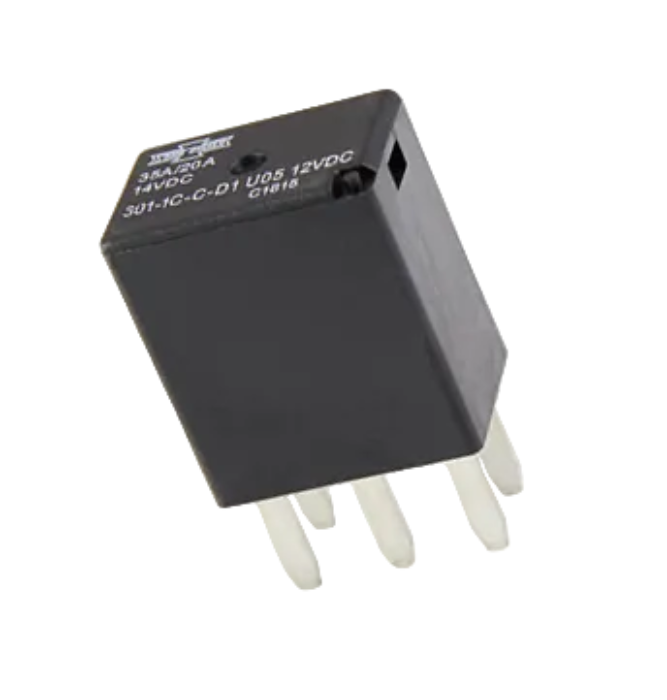

Song Chuan 301-1C-C-D1-U05-12VDC | Micro Relay


Benefits

  • Same Day Shipping
  • Song Chuan Relay as picture
  • Next Day Delivery Available @ checkout
  • Worldwide International Shipping Rates available @ checkout

Description

  • Package Qty:  1 Song Chuan Relay
  • Song Chuan Part Number 301-1C-C-D1-U05-12VDC

301-1C-C-D1-U05-12VDC Schematic

 301-1c-c-r1-u01-12vdc schematic


 Relay Datasheet Specifications



Availability:



Specifications:

Manufacturer

 Song Chuan

Product Category

 Automotive Relays

RoHS

  Details

Coil Voltage

 12 VDC

Relay Contact Form

1 Form C (SPDT-NO, NC)

Mounting Style

 Socket

Contact Material

 Silver Tin Oxide (AgSnO)

Series

301

Contact Form

SPDT (1 Form C)

Power Consumption

1.2W

Brand

 Song Chuan

Type Coil parallel with diode
