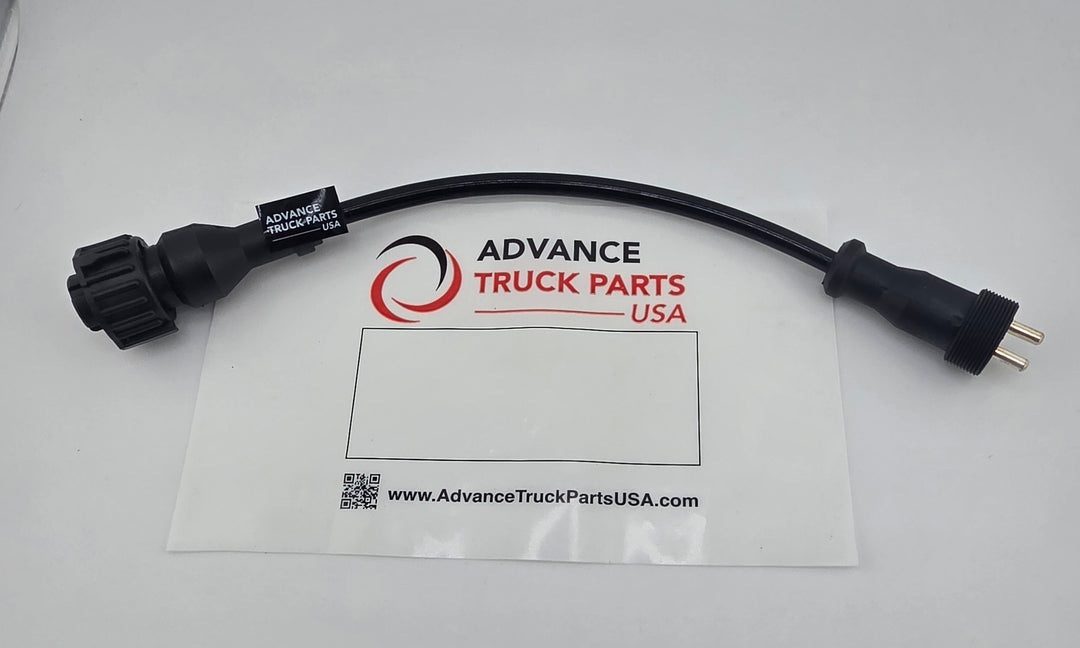

WABCO Style ABS Modulator Adapter Cable (Bayonet to Screw Type)
Product Description
Ensure a secure, fault-free electrical connection in your commercial vehicle’s braking system with the ATP Heavy Duty ABS Modulator Valve Adapter Cable. This high-quality aftermarket harness is engineered to adapt older or alternate bayonet-style connections to modern screw-type interfaces on tractor and trailer ABS modulator valves.
Built to withstand severe road vibration, moisture, and thermal cycling, this 3-pole adapter prevents intermittent sensor signals and false ABS fault codes. It offers a direct plug-and-play installation to restore optimal communication between your braking ECU and air pressure modulator valves.
Technical Specifications
| Feature |
Specification |
| Component Type |
ABS System Wiring Harness / Adapter Cable |
| Connector Configuration |
Straight Female Bayonet to Screw-Type Connection |
| Pin/Pole Count |
3-Pole |
| Cable Length |
Approx. 6 inches (0.49 ft) |
| Material Construction |
High-grade weather-sealed insulation, oil & chemical resistant jacket |
| Application Scope |
Heavy-Duty Tractors, Trucks, and Commercial Trailers |
Industry Cross-Reference & Interchanges
This component is a direct aftermarket replacement for the following manufacturer part numbers:
-
WABCO: 8946011322, 894 601 132 2
-
Meritor: S8946011322, S894 601 132 2
-
Freightliner: WAB8946011322
-
Bendix / Haldex Equivalent: Fits systems requiring standard 3-pole bayonet conversions
